Key Features
- Billet aluminum body and piston precision-machined in-house at Tilton Engineering
- Stainless steel threaded sleeve provides nearly 1.25" of height adjustment (1.77" to 3.00")
- Slip-on installation over stock bearing retainer - no modifications required
- High-temperature mono-seal design with quad tensioner ensures proper seal tension
- Constant contact design self-adjusts for clutch wear, maintaining consistent pedal feel
- Flat face bearing with 1.71" to 3.03" contact diameter fits 8.5" to 11" bent-finger and lever-type clutches
- Full 0.7" piston travel for maximum clutch engagement range
- Double O-ring swivel fittings thoroughly tested to prevent leakage
- Complete kit - steel braided lines, union fitting, and anti-rotation hardware included
- Requires 1.430" bearing retainer guide tube diameter
Description
External slave cylinders create clearance headaches and bellhousing compatibility issues that derail Ford TKO and TKX swaps. The Tilton 6000 Series Hydraulic Release Bearing eliminates those problems entirely. This internal hydraulic design slips directly over the transmission's bearing retainer - no machining, no adapter plates, no fighting for space. The result is a clean installation that works with most bellhousings, including original 4-speed and big block bells that external slaves can't accommodate.
Tilton builds this bearing to race-proven standards. The billet aluminum body and piston are precision-machined in-house at Tilton Engineering, then fitted with a high-temperature mono-seal that incorporates a quad tensioner to maintain proper seal tension under extreme conditions. The constant contact design keeps the bearing face against the pressure plate fingers at all times - no gap to manage, no adjustment as the clutch wears. Pedal feel stays consistent from fresh install through the clutch's entire service life.
The stainless steel threaded adjustment sleeve delivers nearly 1.25" of height adjustability, accommodating bearing heights from 1.77" to 3.00" to work with a wide range of clutch configurations. The flat face bearing design with 1.71" to 3.03" contact diameter is engineered for 8.5" to 11" bent-finger and lever-type pressure plates. With 0.7" of piston travel, this bearing handles aggressive clutch setups without running out of stroke.
Compatible with Ford TKO and TKX transmissions with 1.430" bearing retainer guide tube diameter. Will not work with big-input Toploaders. For a complete hydraulic clutch system, pair with an MDL LF Series Master Clutch Kit and a steel braided line of appropriate length (24" recommended for most applications).

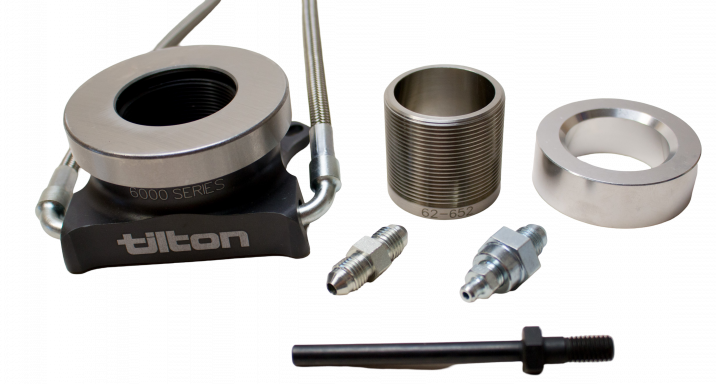

Kit Includes
- Tilton 6000 Series hydraulic release bearing with billet aluminum body and piston
- Stainless steel threaded adjustment sleeve
- Steel braided supply line with AN4 fittings
- Steel braided bleed line with fittings
- Union fitting for main supply line connection
- Anti-rotation bolt
- High-strength transmission retainer bolt
- Installation instructions
- MDL lifetime technical support
