Key Features
- 850 lb-ft torque capacity with sprung hub organic discs for smooth street engagement
- Precision-machined aluminum cover shares OT-Series racing clutch technology
- 2x thicker floater plate eliminates gear clatter and improves heat dissipation
- Billet chromoly flywheel with integrated ring gear and precision register [VERIFY: Description states 153-tooth, custom field shows 168-tooth]
- Internally balanced flywheel for Chevy SB/BB applications
- Heavy-duty straps attach pressure plate and floater to minimize noise
- Tilton 6000-Series hydraulic release bearing included, height preset for Gen 5 Camaro
- 26 spline x 1-1/8" input shaft compatibility
- 6-bolt crank flange mounting pattern
Description
When your Gen 5 Camaro ZL1 starts pushing serious power, the factory clutch becomes the weak link. The Tilton ST-246 Twin-Disc Assembly solves that problem with an 850 lb-ft torque rating while maintaining the street manners you need for daily driving. Unlike stamped steel "performance" clutches that simply add a floater plate to an OEM-style cover, the ST-246 was engineered from the ground up as a true twin-disc clutch—leveraging Tilton's 45+ years of experience building championship-winning clutches for F1, NASCAR, IMSA, and IndyCar.
The precision-machined aluminum cover shares technology with Tilton's OT-Series racing clutches, delivering higher strength, stiffness, and better dynamic balance than any stamped steel competitor. The floater plate is twice the thickness of most twin-disc clutches on the market, which delivers three critical benefits: it allows the use of a sprung hub design at this torque level, eliminates gear clatter at idle, and provides substantially better heat dissipation under hard use. The high-mass main pressure plate and floater are machined from the same proprietary materials used in Tilton's racing clutches, resisting warpage and delivering high heat capacity.
The sprung hub organic discs dampen engine vibrations and reduce gearbox noise, providing smooth engagement characteristics that make this clutch livable in traffic. Heavy-duty straps attach the pressure plate and floater to the cover, minimizing noise and ensuring clean clutch release. The billet chromoly steel flywheel features a precision register that locates the clutch assembly for optimal balance—no loose-fitting bolts or dowels that allow the clutch to shift and create vibration.
Specifically engineered for Gen 5 Camaro ZL1 applications, this kit includes a Tilton 6000-Series hydraulic release bearing that's height-preset at the factory and designed to connect directly to your OEM clutch line. Compatible with 26-spline transmissions including TREMEC T56, TKO, and TKX. Intended for Chevy SB/BB applications with a 6-bolt crank flange.

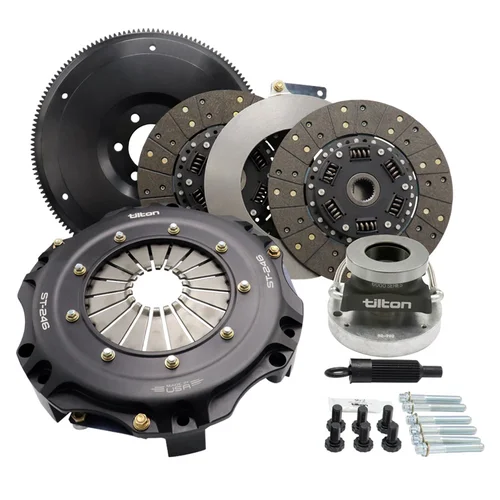

Kit Includes
- Precision-machined aluminum clutch cover with heavy-duty retention straps
- High-mass pressure plate (proprietary racing clutch materials)
- Double-thickness floater plate (proprietary racing clutch materials)
- Two sprung hub organic clutch discs (246mm diameter, 26 spline x 1-1/8")
- Billet chromoly flywheel with integrated ring gear, internally balanced
- Tilton 6000-Series hydraulic release bearing (height preset)
- Clutch bolt kit
- Flywheel bolt kit
- Clutch alignment tool
- Installation instructions
Note: Pilot bearing not included.
