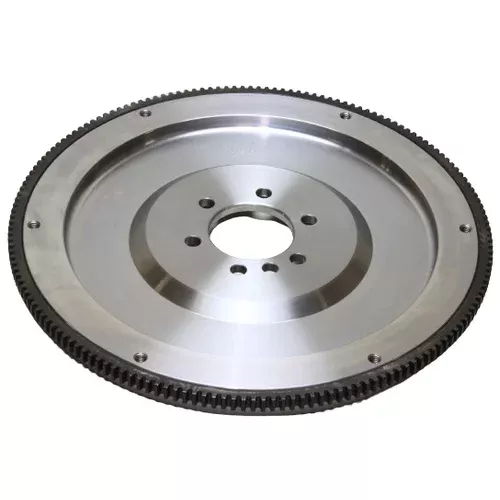

MDL Lighten Billet Steel Flywheel, GM LS 1/2/3/6/7, 6 bolt crank


Purchase MDL Lighten Billet Steel Flywheel, GM LS 1/2/3/6/7, 6 bolt crank

SKU: MD-LBS-LS12367

$290.00 Original Price
GM Billet Flywheel-LS 1/2/3/6/7 - 6 bolt
5 available for immediate delivery







Join Waitlist

Sign up with your email to be notified when this is back in stock!


Perfect for that LS swap.


This item has surface rust on the clutch disk side and cannot be sold as new, otherwise, it is sound for use. This piece starts out as a solid piece of billet steel and is precision machined and Lightened. This flywheel has the same weight as a cast OE flywheel with the strength of billet.


Application:
GM LS 1,2,3,6,7, 6 Bolt crank, Neutral balance


Features:

  • Dual pattern crank mounting holes
  • Made in the USA


Made in the USA


https://www.moderndriveline.com/choosing-a-gm-flywheel/

Specifications

Clutch

Disk Diameter
11"
Disk Single Or Double
Single disk

Flywheel

Balance
Zero
Bolt Count to Crankshaft
6
Bolt Pattern
12-5/8" w/dowels & 10mm Pp bolts, 12-5/8" & 3/8 Pp bolts
Bolt Size
11mm x 1.5mm
Brand Name
MDL
Clutch Bolt Pattern
12-5/8" w/dowels & 10mm Pp bolts, 12-5/8" & 3/8 Pp bolts
Crank Registration Size
2.485"
Material Type
Lighten Billet Steel
Pressure Plate Bolt Size
3/8", 10mm
