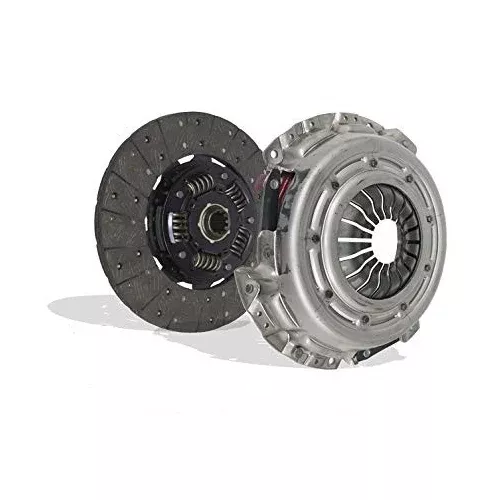

Superior 11" Kevlar Clutch Set | GM LS | 26-Spline T56/TKX
Key Features
- 550 lb-ft torque capacity for high-performance LS builds
- Kevlar/Kevlar friction surfaces deliver smooth engagement with superior heat tolerance
- 26-spline x 1-1/8" hub fits T56, Magnum, TR-6060, TKO and TKX transmissions
- Sprung hub design dampens drivetrain shock for improved drivability
- Diaphragm pressure plate with 12-5/8" equal bolt pattern
- Hand-assembled in-house with rigorous quality inspection before shipping
- Engineered for performance street driving and open track applications
- Made in the USA
Description
High-performance LS builds demand clutch systems that can handle serious power while maintaining streetability. The MDL Superior 11" Kevlar clutch set delivers exactly that balance—rated at 550 lb-ft of torque capacity with dual Kevlar friction surfaces that actually increase grip under hard use rather than fading like organic compounds. When heat builds during aggressive driving, Kevlar's coefficient of friction rises, giving you more holding power precisely when you need it most.
Unlike organic materials that lose torque capacity at elevated temperatures and can burn when slipped excessively, Kevlar resists wear significantly better and won't sustain permanent heat damage under demanding conditions. The sprung hub design absorbs drivetrain shock loads, delivering smooth engagement without the chatter common to solid-hub racing clutches. This combination makes the Superior series ideal for vehicles that split time between spirited street driving and open track days.
The diaphragm-style pressure plate provides progressive pedal feel with clamping force that actually increases over the life of the clutch—delivering lower pedal effort than Long-style pressure plates while maintaining consistent performance. The 12-5/8" equal bolt pattern matches standard GM LS flywheel configurations, and the 26-spline x 1-1/8" hub provides direct compatibility with T56 and T5 transmissions.
Every Superior clutch set is hand-assembled in MDL's facility, where each assembly undergoes rigorous inspection to ensure exacting tolerances and flawless operation before it ships. You receive a ready-to-install, precision-balanced clutch set backed by a 1-year free-from-defect warranty.
Kit Includes
- Diaphragm pressure plate with 12-5/8" equal bolt pattern
- 11" Kevlar/Kevlar clutch disc with 26-spline x 1-1/8" sprung hub
- Pilot bearing
- Clutch alignment tool
- Pressure plate bolt set
- Installation and break-in instructions
- 1-year free-from-defect warranty
