Key Features
- 850 lb-ft torque capacity with sprung-hub organic discs for smooth street engagement
- 246mm (9.7-inch) twin-disc design reduces rotating mass and increases heat capacity over single-disc clutches
- Precision-machined aluminum clutch cover derived from Tilton's OT-Series racing clutch technology
- Double-thickness floater plate eliminates gear chatter and provides superior heat dissipation
- Billet chromoly flywheel with 153-tooth ring gear and precision clutch register for optimal balance [VERIFY: custom field shows 157-tooth]
- 26-spline, 1-1/8-inch input compatible with TREMEC T-56 Magnum and TKO transmissions
- Heavy-duty straps attach pressure plate and floater to minimize noise and ensure clean release
- Compatible with most OEM release bearings (C6 Corvette applications require Tilton 6000-Series HRB)
- Made in the USA by Tilton Engineering
Description
High-horsepower LS builds demand a clutch that won't slip, chatter, or fail under load. The Tilton ST-246 twin-disc clutch and flywheel assembly delivers 850 lb-ft of holding power while maintaining the smooth engagement characteristics you need for daily street duty. Unlike the stamped steel "performance" clutches flooding the market, the ST-246 was engineered from the ground up as a true twin-disc clutch—not an OEM pressure plate with a floater bolted on as an afterthought.
The precision-machined aluminum clutch cover shares technology directly from Tilton's championship-winning OT-Series racing clutches used in F1, NASCAR, IMSA, IndyCar, and Formula Drift. This design delivers superior strength, stiffness, and dynamic balance compared to stamped steel alternatives. The high-mass main pressure plate and floater plate are machined from proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warpage resistance. The floater plate is twice the thickness of most competitor twin-disc clutches—this extra mass allows for the sprung hub design while eliminating gear chatter and improving heat dissipation during hard use.
The sprung-hub organic discs dampen engine vibrations and reduce transmission noise, delivering engagement characteristics you can live with in traffic. The included billet chromoly flywheel features a precision register that locates the clutch for optimal balance—a significant improvement over the loose-fitting bolts and dowels found on stamped steel clutch assemblies. Internal balance matches LS1, LS2, LS3, LS6, and LS7 engines with 6-bolt crankshaft flanges.
This kit works with most OEM hydraulic release bearings. C6 Corvette and Gen5 Camaro applications require a Tilton 6000-Series hydraulic release bearing (sold separately for this kit). Pilot bearing and throwout bearing are not included. Designed for TREMEC T-56 Magnum and TKO transmissions with 26-spline, 1-1/8-inch input shafts.

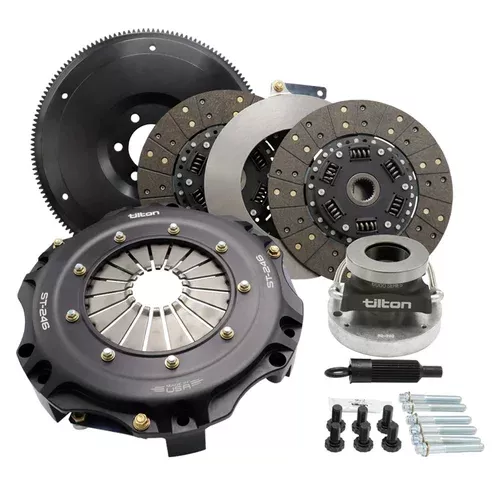

Kit Includes
- Billet chromoly steel flywheel with 153-tooth ring gear, internally balanced [VERIFY: custom field shows 157-tooth]
- Precision-machined aluminum clutch cover with OT-Series racing technology
- High-mass main pressure plate with heavy-duty attachment straps
- Double-thickness steel floater plate with heavy-duty attachment straps
- Two 246mm organic clutch discs with sprung hubs (26-spline, 1-1/8-inch)
- Flywheel mounting bolts
- Clutch cover mounting bolts
- Clutch alignment tool
- Installation instructions
