Key Features
- 850 lb-ft torque capacity with organic sprung-hub discs for smooth street engagement
- 246mm (9.7 in.) twin disc design doubles friction surface area for superior clamping
- Precision-machined aluminum clutch cover shares technology from Tilton's OT-Series racing clutches
- Billet chromoly flywheel with 168-tooth ring gear and 8-bolt crankshaft pattern
- Internally balanced flywheel for GM LS/LT applications
- High-mass floater plate - twice the thickness of competitors for better heat dissipation and zero gear rattle
- Heavy-duty straps attach pressure plate and floater to minimize noise and ensure clean release
- 26-spline x 1-1/8 in. input shaft compatibility for TREMEC T-56, TKO, and TKX transmissions
- Includes Tilton 6000 Series hydraulic release bearing with height preset for direct OEM line connection
Description
When you're pushing serious power through a Gen 5 Camaro and need a clutch that handles the torque without sacrificing daily drivability, the Tilton ST-246 delivers race-proven engineering in a street-friendly package. Unlike stamped steel "performance clutches" with a floater plate added as an afterthought, the ST-246 was designed from the ground up as a true twin disc clutch - sharing technology directly from Tilton's championship-winning OT-Series racing clutches used in F1, NASCAR, IMSA, IndyCar, and Formula Drift.
The engineering advantage starts with the precision-machined aluminum clutch cover, delivering higher strength, stiffness, and better dynamic balance than OE-type stamped steel designs. The high-mass main pressure plate and floater plate are machined from the same proprietary materials used in Tilton's racing clutches, providing exceptional heat capacity and warp resistance under hard use. That floater plate runs twice the thickness of competing twin disc designs - this extra mass enables the sprung-hub disc configuration that dampens engine vibrations, eliminates gear rattle, and delivers smooth engagement you can actually live with in traffic.
The billet chromoly steel flywheel features a precision register that locates the clutch assembly for optimal balance - a significant upgrade over the loose-fitting bolts and dowels used on stamped steel setups. The 168-tooth ring gear and 8-bolt crankshaft pattern provide direct fitment for 2010-2015 Camaro SS and Z/28 applications. The organic sprung-hub discs with 26-spline x 1-1/8 in. hubs are compatible with TREMEC T-56, TKO, and TKX transmissions.
This kit includes the Tilton 6000 Series hydraulic release bearing, factory preset to the correct height for plug-and-play installation. The HRB connects directly to OEM clutch lines on Gen 5 Camaro applications, eliminating the need for mechanical linkages, pivot balls, or external slave cylinders. Since 1972, Tilton Engineering has been the leading supplier of small-diameter racing clutches - the ST-246 brings that nearly 50 years of championship-winning experience to high-performance street applications.

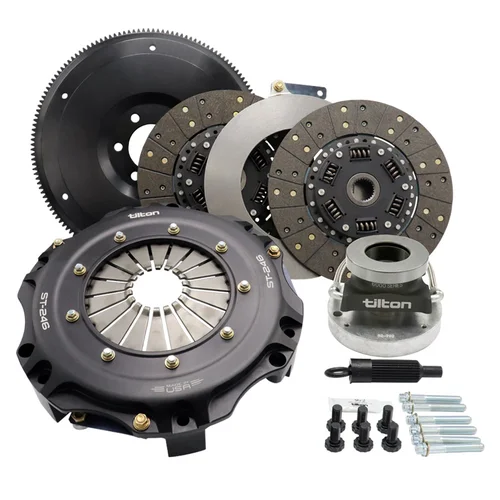

Kit Includes
- Precision-machined aluminum clutch cover assembly with diaphragm
- Two 246mm organic clutch discs with sprung center hubs (26-spline x 1-1/8 in.)
- High-mass steel floater plate with heavy-duty straps
- Billet chromoly flywheel with 168-tooth ring gear (8-bolt, internally balanced)
- Tilton 6000 Series hydraulic release bearing (height preset)
- Hydraulic mounting hardware and fittings
- Pressure plate bolts
- Flywheel bolts
- Clutch alignment tool
Note: Pilot bearing not included.
