Key Features
- 700 lb-ft torque capacity - handles serious power from LS, big-block, and small-block builds
- Close ratio gear set (2.66, 1.78, 1.30, 1.00, 0.80, 0.63) - keeps you in the powerband through every shift
- Double overdrive design with 0.80 fifth and 0.63 sixth - lower cruising RPM and improved fuel economy
- 26-spline input shaft and 31-spline output shaft - compatible with a wide range of clutch and driveline combinations
- Triple cone synchronizers on gears 1-4, double cone on 5-6 and reverse - crisp, precise shifts at high RPM
- 4616 chromoly gears and shafts with substantially increased face widths - built to survive high-stress applications
- One-piece countershaft resists distortion under load
- Fully reversible TKO-style die-cast aluminum shifter - smooth, positive action with multiple mounting positions
- Dual speedometer pickups - accommodates both electronic and mechanical speedometers
- Built-in mid-shift provisions - relocate the shifter forward without hassle
- 85mm center distance - matches TKO positioning for proven conversion fitment
- Approximately 135 lbs dry weight - reasonable weight for a transmission this strong
- 3.65-quart fluid capacity - uses Dexron III ATF
Description
When TREMEC set out to replace the legendary T56, they didn't just update it - they engineered the Magnum from the ground up using TR-6060 architecture found in factory supercars like the C6 ZR1 Corvette and Viper ACR. The result is the strongest, smoothest-shifting 6-speed manual transmission available for the aftermarket, purpose-built for GM LS engines as well as big-block and small-block applications when paired with the correct bellhousing.
This close ratio version (TUET11009) features gear ratios optimized for high-performance street driving and road racing. The 2.66 first gear launches hard without being too aggressive, while the tightly-spaced 1.78 second, 1.30 third, and 1:1 fourth keep you in the meat of your powerband. The double overdrive - 0.80 fifth and 0.63 sixth - drops highway RPM dramatically, improving both cruising comfort and fuel economy. The 4616 chromoly gears feature two-piece laser-beam welded construction with increased face widths for greater strength and more precise tooth geometry.
Inside, the Magnum benefits from modern OEM synchronizer technology: triple cone units on gears 1-4 and double cone on 5-6 and reverse deliver incredibly short, low-effort shift throws with precise engagement even at high RPM. The redesigned shift forks eliminate the wear issues that plagued earlier T56 designs, and the extensively modified case prevents leaks under high-stress conditions. The fully reversible TKO-style aluminum shifter provides multiple mounting positions, and built-in mid-shift provisions under the inspection cover make forward shifter relocation simple for bench-seat classics.
Compatible with GM big-block, small-block, and LS engines using the appropriate bellhousing. Uses standard T56 bellhousing bolt pattern with internal CSC (concentric slave cylinder) mounting provisions. Requires Dexron III ATF. Rated to 7,800 RPM.
Kit Includes

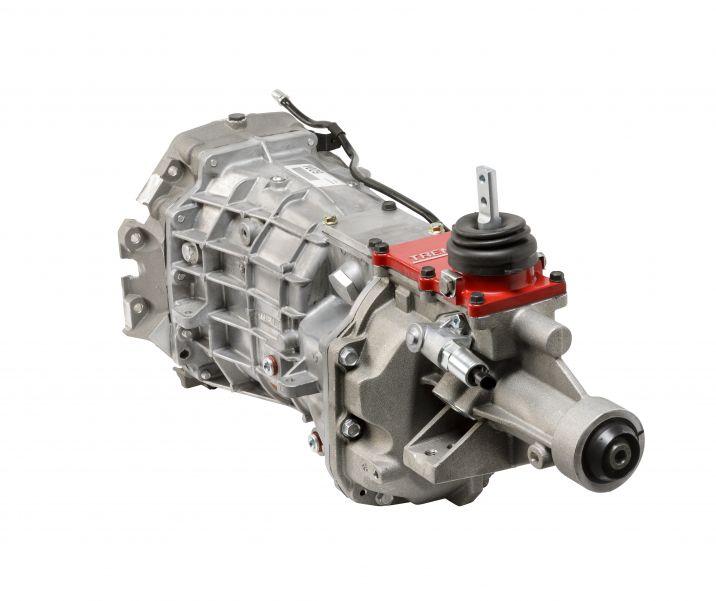

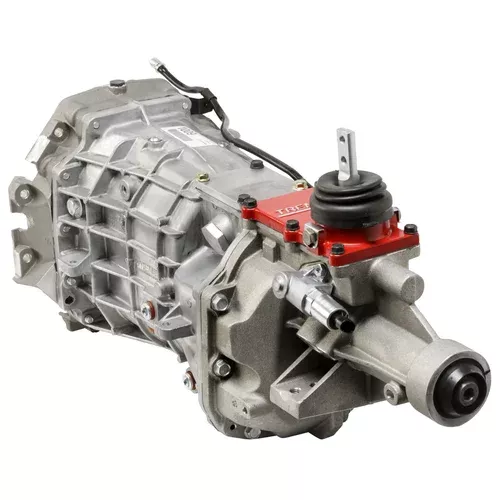

- TREMEC T56 Magnum 6-speed transmission assembly (TUET11009)
- Fully reversible die-cast aluminum shifter with reverse lockout
- Dual speedometer pickup provisions (electronic and mechanical)
- 7-tooth internal speedometer drive gear
- TREMEC factory warranty
- MDL extended warranty - additional year with 1-year grace period when purchased as part of a complete conversion package
- Lifetime technical support from MDL
