Hydraulic Hose Replacement Kit | Tilton 6000 Series Release Bearing
Key Features
- Direct replacement for Tilton 6000-Series hydraulic release bearing hoses
- 11-inch stainless steel braided hose with Teflon lining for superior flexibility and heat resistance
- -4AN female straight fitting on one end, 90-degree slip fitting with O-ring seal on the other
- Dual-function design serves as both supply and vent line
- Works on both sides of the bearing body
- Pressure tested for leak-free operation
- Includes replacement O-rings and retaining clip
Description
When your Tilton 6000-Series hydraulic release bearing develops a leak or the braided line shows signs of wear, this replacement hose kit restores full function without replacing the entire bearing assembly. The 6000-Series has earned its reputation for race-proven reliability at a competitive price—this OEM-specification hose maintains that standard with materials and construction that match the original.

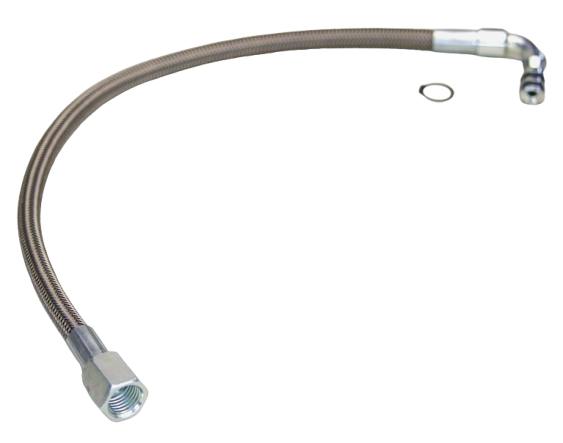

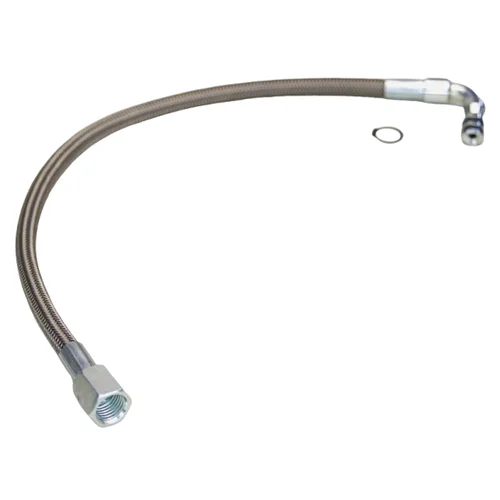

The 11-inch stainless steel braided hose features a Teflon inner lining that delivers superior flexibility compared to rubber alternatives while resisting heat and hydraulic fluid degradation. One end terminates in a straight -4AN female stainless steel fitting for your supply line connection, while the opposite end uses a 90-degree slip fitting with O-ring groove that seats into the bearing body. This dual-purpose design allows the hose to function as either the supply or vent line—the same hose is correct for both sides of the bearing body.
The included retaining clip secures the slip fitting connection to the bearing, preventing the hose from backing out under vibration. Fresh O-rings ensure proper sealing at both connection points. Every hose is pressure tested before shipping to verify leak-free performance.
Compatible with all Tilton 6000-Series hydraulic release bearings, including universal and transmission-specific models for T5, TKO, T56, Toploader, Saginaw, and other popular applications. Installation follows standard hydraulic practices—detailed instructions are included.
Kit Includes
- (1) 11-inch stainless steel braided hydraulic hose with Teflon lining
- (1) -4AN female straight stainless steel fitting
- (1) 90-degree slip fitting with O-ring
- (1) Retaining clip
- Replacement O-rings
- Installation instructions
