Install Hardware Kit | LS and Late Model LT1/LT4 Engine to TKX | Aluminum Bellhousing
Key Features
- Complete bolt set for LS and late model LS-based LT1/LT4 engines with aluminum bellhousing to TKX
- Includes both bellhousing-to-engine and transmission-to-bellhousing fasteners
- Eliminates parts-counter guesswork with application-specific hardware
- Designed specifically for aluminum bellhousing installations
- Note: For early LT engines, use HWkit-TKX Chevy AL instead
Description
Bolting a TREMEC TKX to an LS or late model LS-based LT1/LT4 engine with an aluminum bellhousing requires specific hardware that the factory never intended to supply. This MDL install hardware kit provides the correct fasteners for both the bellhousing-to-engine block and transmission-to-bellhousing connections, eliminating trips to the hardware store and the headache of sourcing individual bolts with the right thread pitch and length.
The TKX uses a GM-style bolt pattern that shares commonality with classic small-block Chevys, but aluminum bellhousings demand specific bolt lengths to properly engage the softer material without bottoming out or stripping threads. This kit is matched to the dimensional requirements of LS-series (Gen III/IV) and late model LS-based LT1/LT4 (Gen V) engines when paired with aftermarket aluminum bellhousings.
Important: This hardware kit is designed specifically for late model LS-based LT1/LT4 engines. If you're running an early LT engine (1992-1997 LT1/LT4), you'll need the HWkit-TKX Chevy AL kit instead. The bolt patterns are similar but the hardware specifications differ between generations.
Whether you're building a resto-mod with an LS swap or adding a TKX to a late-model Corvette or Camaro powerplant, this kit ensures you have the right fasteners from the start. One less variable to troubleshoot during your transmission installation.

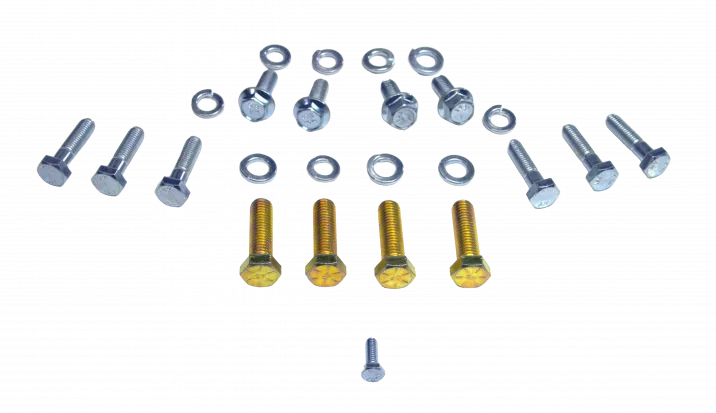

Kit Includes
- Bellhousing-to-engine block bolts for LS/late model LT1/LT4
- Transmission-to-bellhousing bolts for TKX
- Required washers for proper load distribution
