Key Features

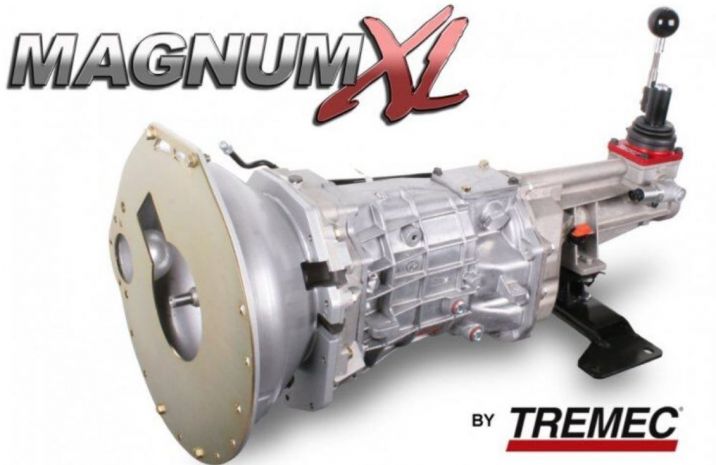

- TREMEC TUKT12021 Magnum XL 6-speed transmission with 700 lb-ft torque capacity and 7,800 RPM rating
- Wide-ratio double overdrive gearing: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63 for aggressive launches and fuel-saving highway cruising
- Triple cone synchronizers on gears 1-4, double cone synchronizers on gears 5-6 and reverse for smooth high-RPM shifts
- QuickTime SFI 6.1 certified steel scatterproof bellhousing with block plate included
- Extended-length tail section eliminates semi-remote shifter for direct-mounted, precise shift feel
- 26-spline input shaft and 31-spline output shaft for high-performance clutch and driveshaft compatibility
- Swap-specific steel crossmember and OE-quality transmission mount for direct-fit installation
- Direct shift aluminum shifter with black TREMEC shift ball for smooth, positive shift action
- Analog electric speedometer sensor eliminates cable drive
- Reuses OEM hydraulic clutch release system for simplified installation
- MDL extended warranty (one extra year from date of install) plus lifetime technical support
Description
Your MT-82 is the weak link in your S197 or S550 Mustang build. Every serious builder knows it. This complete TREMEC Magnum XL conversion kit delivers the bulletproof strength, precision shifting, and double overdrive gearing that your modular V8 deserves. Modern Driveline was the first to install a Magnum XL into both V8 and V6 Mustangs and brings the industry's most in-depth knowledge and complete parts lineup to your build.
The Magnum XL builds on TREMEC's proven Magnum 6-speed architecture with refinements specifically engineered for late-model Mustangs. The extended-length tail section eliminates the clumsy semi-remote shifter found in factory 5- and 6-speed applications, replacing it with a rigid direct-shift design that delivers crisp, low-effort gear changes. Triple cone synchronizers on gears 1-4 and double cone synchronizers on gears 5-6 and reverse handle engines approaching 8,000 RPM straight out of the box. With 700 lb-ft of torque capacity and an 85mm center distance, this transmission matches or exceeds the output of even heavily modified Coyote and modular builds.
The 2.97 first gear provides aggressive launches while the 0.80 and 0.63 double overdrive ratios deliver relaxed highway cruising with reduced engine wear and improved fuel economy. This wide-ratio gearset is ideal for street-driven performance cars and daily drivers that still see occasional track duty. The included SFI 6.1 certified QuickTime steel bellhousing bolts directly to Ford modular V8 engines, while the swap-specific steel crossmember and OE-quality transmission mount ensure direct-fit installation with no fabrication required.
Designed for 2005-2018 S197 and S550 Mustangs with Ford modular V8 engines. Installation requires a 26-spline clutch and one-piece driveshaft (sold separately). Reuses OEM hydraulic clutch release system. Some applications may require speedometer recalibration via ECU tuning or a plug-in signal converter. MDL extends TREMEC's factory warranty by one additional year from the date of installation and backs every kit with lifetime technical support. Made in the USA.
Kit Includes

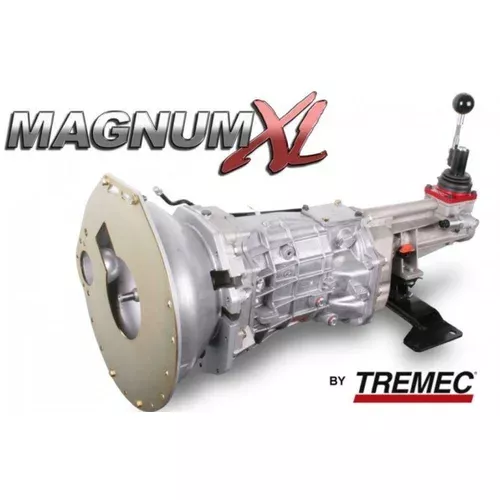

- TREMEC TUKT12021 Magnum XL 6-speed transmission (gear ratios: 2.97, 2.10, 1.46, 1.00, 0.80, 0.63, 2.90 reverse)
- QuickTime SFI 6.1 certified steel scatterproof bellhousing with block plate
- Swap-specific steel crossmember
- OE-quality transmission mount
- Direct shift aluminum shifter with black TREMEC shift ball
- Analog electric speedometer sensor with 7-tooth internal drive gear
- MDL extended warranty (TREMEC 1-year warranty plus one additional year from install date)
- MDL lifetime technical support
