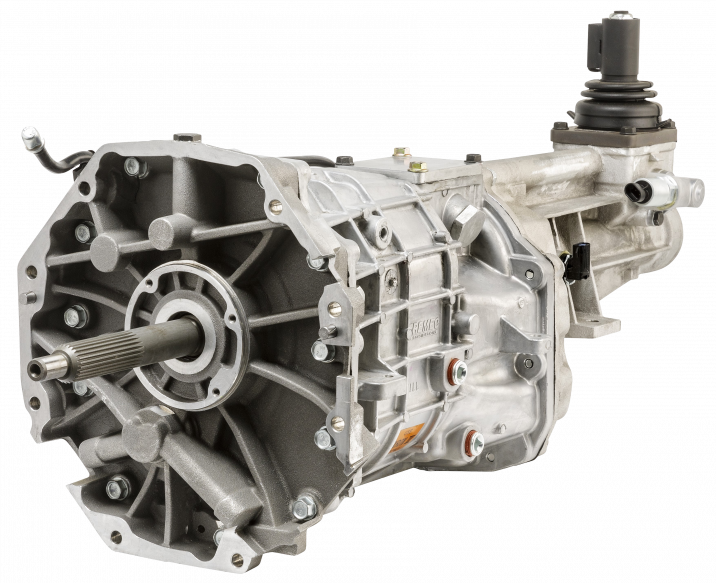

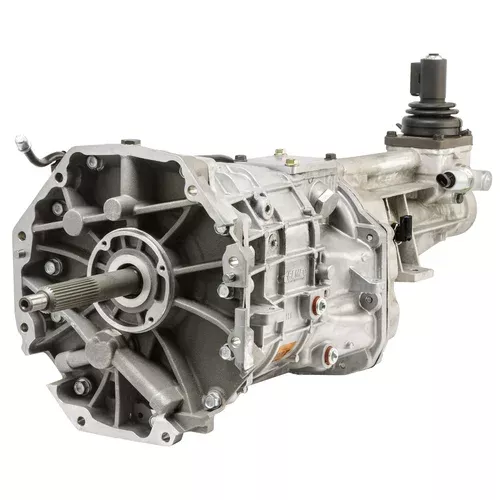

Tremec S-197 Magnum XL 6-Speed transmission, 2.97 first .80/.63 od


Purchase Tremec S-197 Magnum XL 6-Speed transmission, 2.97 first .80/.63 od

SKU: MD-586-11940 SU

$3,695.00 Original Price
No reviews yet. Write a review!
WE ARE YOUR TUET16901 TREMEC T-56 Magnum XL 6-speed Transmission ONLY
  • Gear Ratios 2.97, 2.10, 1.43, 1, .80, .63
  • 26 spline input, 31 spline output Shafts
  • Torque rated 700+ft/lbs
  • Direct mounted shifter
  • Analog Electric Speedometer Sensor







Join Waitlist

Sign up with your email to be notified when this is back in stock!


TREMEC T-56 MAGNUM XL(Extended Length shifter) 6-Speed Double Overdrive TransmissionONLYTUET11940
TUET11940 - Magnum XL transmission is sold without the "Kit"for those that need a replacement transmission or wish to install a Magnum XL into many other platforms.
Introduced to the marketplace in 2012, the Magnum XL is a continuation of the popular Magnum 6-speed series.Featuring all the most important content from the original Magnum, the XL retains its brute strength and sophistication but eliminates its multiple shifter locations and dual speedo outputs
The Magnum XL adds an extended-length tail section designed to eliminate the clumsy semi-remote shifter found in many popular late-model applications. For a complete Tremec T-56 Magnum XL install package, Contact us for an installation package that includes, Flywheel, clutches, module/harnessing, driveshaft, oil, and installation instructions.
Features & Bene
Fits:
  • Gear Ratios 2.97 2.10, 1.46, 1, .80, .63 rev 2.90:1
  • 700 lb-ft effective torque capacity.
  • Fits behind Ford Module, and GM LS motors with QuickTime bellhousing.
  • Direct shift aluminum shifter for smooth, positive shift action.
  • Electric analog sensor speedometer.
  • Triple cone synchronizers on gears 1-4, double cone synchronizers on gears 5-6, as well as reverse.
  • Accurate, smooth, high-rpm shift capabilities.
  • 26 Spline input shaft
  • 31 Spline output shaft
TREMECPart NumberApplicationTorque Cap.(lbs-ft)Gear Ratio Chart
1st2nd3rd4th5th6thRev
TUET16886FORD7002.661.781.301.000.800.632.90
TUET11940FORD7002.972.101.461.000.800.632.90
TUET12021FORD7002.972.101.461.000.800.632.90
TUET16901FORD7002.661.781.301.000.800.632.90
Experience the MDL difference: When you purchase a complete MDL Conversion Package
    • We extend the manufacturers warranty by an extra year with a 1-year grace period.
    • We have the best in the industry customer service.
    • We provide lifetime technical support.
      NOTE:T56 Magnum XL cannot be ordered online, we ask that you please call us at: 208-453-9800One of our sales agents will be more than happy to process your order. This item can only be shipped via ( LTL ) - Light Truck Load service UPS ground is not an option due to the weight of the item, see below. UPS LTL freight shipping cost to a commercial or nearest freight depot address only within the lower 48 states.( Shipment to a Residential Address is an additional $125 and can be billed after delivery )
https://www.moderndriveline.com/5-things-to-consider-when-converting-to-a-tremec/

Reviews

There are no reviews yet so why don't you use the form here and be the first to submit a review?

Write a Testimonial

Write a Testimonial

Your email is for verification purposes only and will NOT be published or shared. See our Privacy Policy.

Specifications

Transmission

Number of Gears
6
