Key Features
- 13/16" (0.813") bore with full 1.12" stroke delivers 0.58 cubic inches of fluid volume per stroke
- Ultra-short 3.37" body provides 2.16" additional clearance versus standard master cylinders
- 1/8"-27 NPT fluid outlet positioned at top radius of bore minimizes trapped air
- Enhanced inlet port accepts included reservoir or custom 11/16-20 threaded fittings
- Black E-coated aluminum body resists corrosion with durable long-lasting finish
- 7.80" overall length with standard flange mount pattern
- Rebuildable design for long service life
- Made in the USA
Description
Tight engine bays and custom firewall setups demand a master cylinder that delivers full-size output capacity without full-size dimensions. The Wilwood Compact Remote Flange Mount Master Cylinder solves this problem with an ultra-short 3.37" body length that provides 2.16" of additional clearance between the mounting flange and fluid outlet compared to standard units. Despite the compact footprint, the full 1.12" piston stroke meets or exceeds the stroke capacity of most full-size master cylinders.
The 13/16" (0.813") bore size produces 0.520 square inches of piston area and displaces 0.58 cubic inches of fluid per stroke--ideal for hydraulic clutch applications where consistent engagement and positive pedal feel matter. The 1/8"-27 NPT fluid outlet port is strategically positioned at the top radius of the cylinder bore to minimize trapped air, ensuring reliable bleeding and consistent hydraulic response. This engineering detail eliminates one of the most common frustrations with aftermarket master cylinder installations.
The enhanced fluid inlet port accommodates the standard reservoir included in the kit, while 11/16-20 internal threads allow custom reservoir arrangements for builders who need alternate mounting configurations. The precision-machined aluminum body receives a black E-coat finish that resists corrosion and maintains a professional appearance through years of service. The fully rebuildable design means this master cylinder can be refreshed rather than replaced.
With a 7.80" overall length and standard flange mount pattern, this unit fits pedal assemblies and firewall mounts designed for compact master cylinders. Compatible with DOT 3 or DOT 4 brake fluid. Made in the USA by Wilwood with a commitment to quality and precision that racing and performance applications demand.
Kit Includes

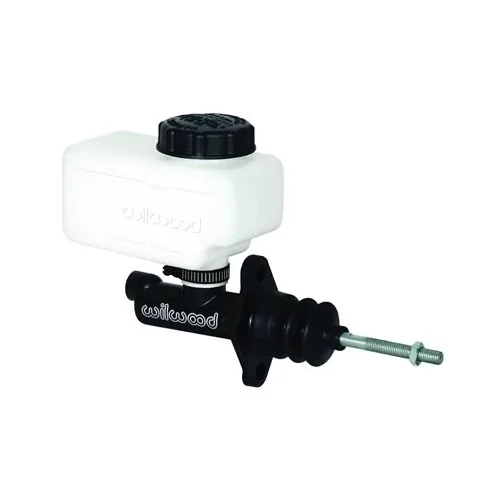

- Wilwood compact remote flange mount master cylinder with 13/16" bore
- Plastic fluid reservoir with mounting hardware
- Reservoir hose and fittings
- Installation hardware
- Lifetime MDL technical support
