Key Features
- Ultra-compact 3.37" body length - 2.16" shorter than full-size cylinders for tight firewall and pedal box clearances
- Full 1.12" piston stroke capacity matches or exceeds most full-size master cylinders
- 1" bore delivers 0.87 cubic inches of fluid volume per stroke
- 3/8-24 banjo outlet positioned at top radius of bore to virtually eliminate trapped air
- Enhanced 11/16-20 threaded inlet port accepts standard or custom reservoir configurations
- Black E-coated aluminum body resists corrosion and provides durable long-lasting finish
- Remote reservoir mounting for flexible installation and simplified bleeding
Description
When firewall clearance is critical but you need full master cylinder performance, this Wilwood Compact Remote Master Cylinder delivers maximum stroke capacity in minimum space. Designed specifically for limited-space applications requiring the output capacity of a full-size master cylinder, this unit packs professional-grade hydraulics into a package roughly the size of a roll of quarters.
The ultra-short 3.37" compact body provides 2.16" of additional clearance between the mounting flange and the fluid outlet compared to standard units. Despite the compact dimensions, a full 1.12" of piston stroke meets or exceeds the stroke capacity of most full-size cylinders. The 3/8-24 banjo outlet represents a significant upgrade over traditional NPT ports - positioned at the top radius of the cylinder bore, it dramatically reduces the chances for trapped air that can cause spongy pedal feel and inconsistent actuation.
Engineering details matter in hydraulic systems. The enhanced fluid inlet port allows mounting of the standard reservoir included in the kit while also containing 11/16-20 internal threads for custom reservoir arrangements. This flexibility lets you route the reservoir wherever it works best for your build - critical in crowded engine bays or race chassis. The black E-coated aluminum body resists corrosion and maintains a durable, long-lasting finish even in demanding environments.
Perfect for hydraulic clutch conversions, racing brake applications, and custom builds where space is at a premium but performance cannot be compromised. The flange-mount design provides easy installation in any vehicle. Made in the USA.

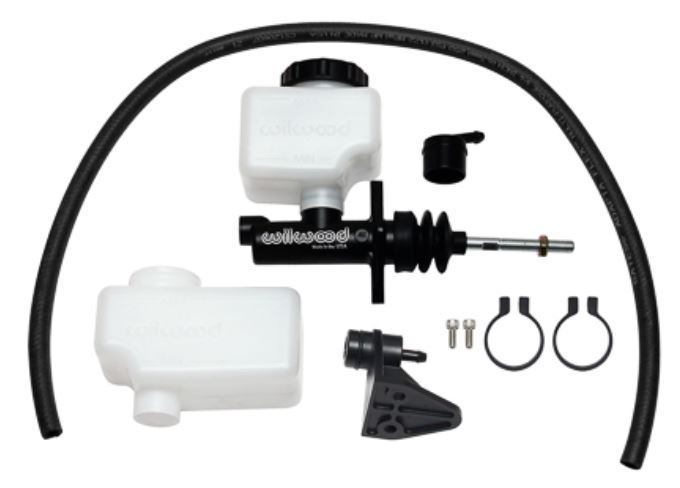

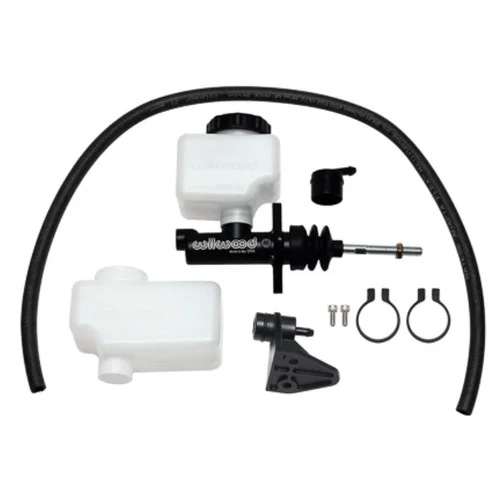

Kit Includes
- Wilwood 1" bore compact master cylinder with black E-coated aluminum body
- Remote reservoir with mounting hardware
- Plastic reservoir hose adapters
- Standard banjo bolt and fittings for 3/8-24 outlet
