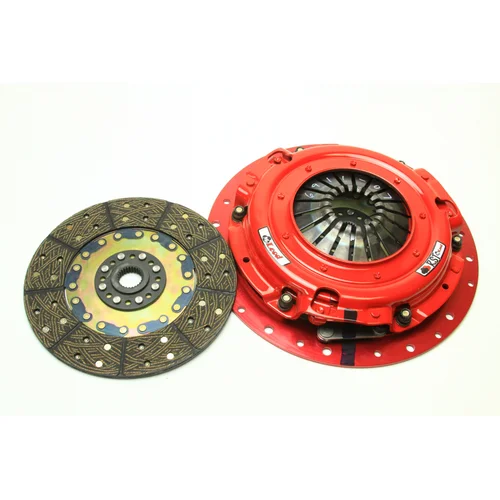

McLeod RST Series Twin Dick Clutch
RST:9.687in. Dia. Disc:For use with Small Diameter Flywheel:1-1/8x10
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit.
Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able.
Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast.
This unit is not intended for competition use!
RST:9.687in. Dia. Disc:For use with Small Diameter Flywheel:1-1/8x10
Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able.
Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast.
This unit is not intended for competition use!
Specifications
| Make |
|---|
| GM |
| Application |
| RST,Small Black Adapter Ring |
| Pressure Plate Pattern |
| 10.5in. Borg & Beck |
| Pressure Plattern 2 |
| 10.5in. Ford Long |
| Pressure Plattern 3 |
| 10.5in. - 86-Up Mustang Diaphragm with dowel pins. |
| Spline |
| 1-1/8 x 10 |
| Pressure Plate Style |
| Diaphragm |
| Disc Dia. |
| 9.687in. Dia. |
| Torque Capacity at the Crank |
| 800 Ft Lbs. |
| Flywheel Included |
| No |
Street legal performance cars today are more powerful than ever before. It would seem that while a decade ago 500 hp made you the big dog in your hometown, today its just the starting point.
Many of those that are making these insane power levels are also still rowing their own gears. If youre rowing those gears, and youre not driving what would be considered a full-on race car, then youre probably running something heavy duty in the clutch department.
McLeod RST street clutch for cars up to 800HP
small black ring. This ring is most commonly used in part numbers that start out as 6913 or 6923. This adapter ring fits all of the small diameter flywheels such as the following:
Chevy 153T
Chrysler 130T
Ford 157T
Buick, Olds, Pontiac 153T, 156T
