Key Features
- 1,000 HP torque capacity - handles extreme horsepower while remaining street-driveable
- Two ceramic friction discs (9.687" diameter) with slightly aggressive engagement and soft pedal effort
- Solid hub design for maximum durability under high-torque loads
- Floater plate architecture for dual-disc holding power with excellent release characteristics
- 26-spline, 1-1/8" input shaft compatibility for T56, TKX, and similar transmissions
- McLeod patent-pending large diameter adapter ring - fits existing large-diameter flywheels without dedicated flywheel purchase
- Diaphragm-style pressure plate for lighter-than-stock pedal feel
- Compatible with multiple flywheel bolt patterns: 11" Long, 11-5/8" EQ, 11-5/12" Long, 12-3/8" EQ
Description
Street-legal performance cars are making more power than ever, and if you're rowing your own gears past the 500 HP mark, you need a clutch that can handle the abuse without sacrificing daily driveability. The McLeod RXT Twin Disc Clutch Kit solves the classic high-horsepower dilemma - massive holding power without the harsh engagement and heavy pedal effort that make twin-disc setups miserable in traffic.
Rated at 1,000 HP, the RXT uses two ceramic-faced 9.687" friction discs mounted to a solid hub, distributing clamping loads across four friction surfaces for superior heat dissipation and consistent engagement under hard launches. The ceramic facings provide slightly aggressive engagement - enough bite to transfer serious torque without the on/off grabbiness that plagues race-only clutches. The diaphragm-style pressure plate delivers lighter-than-stock pedal effort, making this a genuinely streetable setup for stop-and-go driving.
This economical kit uses McLeod's patent-pending large diameter adapter ring system, allowing you to retain your existing large-diameter flywheel rather than purchasing a dedicated unit. The large red adapter ring fits common big-flywheel applications including Chevy 168T, Ford 164T/176T/180T/184T, Chrysler 143T/172T, and Buick/Olds/Pontiac 160T/166T configurations. The 26-spline, 1-1/8" input shaft configuration matches T56, TKX, and other performance transmissions.
Compatible with 1955-85 Chevy V8 engines equipped with large diameter flywheels. Note: McLeod street performance clutches require a 500-750 mile break-in period of stop-and-go city driving (1,200-1,500 clutch cycles) before wide-open-throttle use or dyno tuning. This kit does not include a pilot bearing or throwout bearing. Made in the USA.

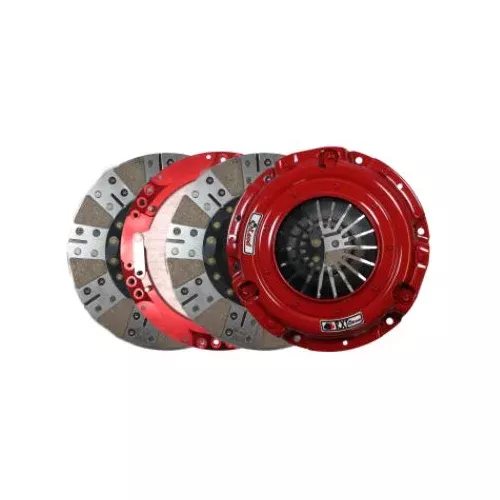

Kit Includes
- Diaphragm-style pressure plate
- Two ceramic friction discs (9.687" diameter, 26-spline, 1-1/8" hub)
- Solid hub assembly
- Steel floater plate
- McLeod patent-pending large diameter adapter ring
- Clutch alignment pilot tool
- Installation instructions with break-in procedure
Note: Pilot bearing and throwout bearing not included - inspect and replace as needed during installation.
