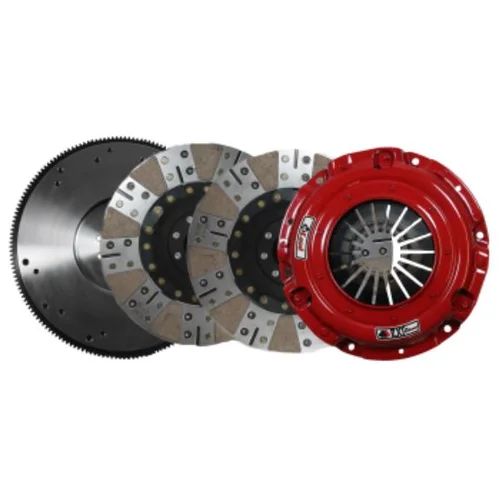

McLeod RXT Twin Disc Clutch & Aluminum Flywheel
LS-X 6 Bolt Crank:168T:1-1/8x26
LS-X 6 Bolt Crank:168T:1-1/8x26
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able.
Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast.
This clutch is perfect for the person that wants the best of both worlds.
This clutch is perfect for the person that wants the best of both worlds.
Specifications
Make Chevrolet, Cadillac
Engine 1997-13 LS1/2/3/6/7
Horsepower/Torque 1000
Flywheel Included Yes
Flywheel Material Aluminum
Flywheel Ring Gear 168T
Inputshaft Spline 1-1/8 x 26
Disc Material Ceramic
Disc Diameter 9.687"
NOTE 2004-07 Cadillac CTS-V must purchase slave cylinder spacer 1377-950 (sold separately)
Break-In Procedure
All McLeod street performance clutches require a Break-In Period of 500-750 miles of street, stop and go type of driving prior to driving at wide open throttle.
This mileage is required to properly seat the disc with the pressure plate and the flywheel. The mileage listed will provide about 1200 apply and release cycles to the clutch assembly.
This mileage is required to properly seat the disc with the pressure plate and the flywheel. The mileage listed will provide about 1200 apply and release cycles to the clutch assembly.
DO NOT run the vehicle on a chassis dyno prior to full Break-In procedure.
Important: During performance driving and break-in, all traction control devices must be turned off or clutch slippage will occur!
Bolt Torque Specs
1/4” = 15 FT. LBS
5/16” = 25 FT. LBS
3/8” = 35 FT. LBS
7/16” = 65 FT. LBS
½” = 70 FT. LBS
8MM = 25 FT. LBS
10MM = 45 FT. LBS
10MM Crank Bolt = 65 FT. LBS
11MM Crank Bolt = 65 FT. LBS
