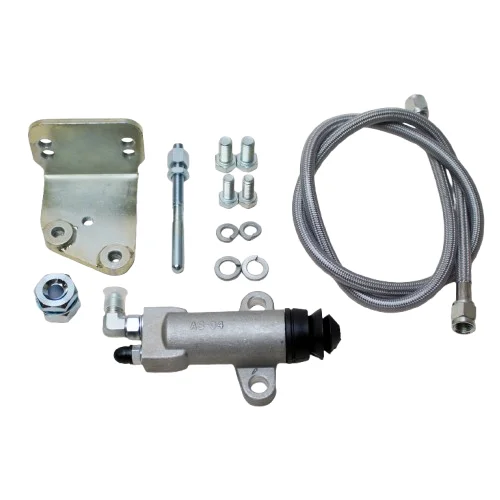

MDL LF Series External Hydraulic Slave Kit, 94-95 5.0L/ 94-04 3.8L Mustang, T-5

Hydraulic External Slave Kit, 94-95 5.0L, 94-04 3.8L T5 Bellhousing with a 7 O'clock fork position
Application:

• 1994-95 Mustang GT/Cobra T-5


• 1994-04 Mustang 3.8L V6 T-5

Modern Driveline Lightfoot series clutch slave cylinder kit for 94-95 Mustang/Cobra SN95 T-5 aluminum bellhousings (5.0L = RF-F4ZR-6394-CA or 3.8L = RF-F6ZR-6394-AB) is the solution for converting the cable bellhousing to external hydraulic release. Mounted to the bellhousing, the cylinder pushes from the rear of the fork, clearing long tube headers while making it easy to install and service. Gone are the problems of clutch cable clearance issues and heavier pedal due to worn cables that drag. When coupled to MDL LF Series master cylinder kits, installing or converting to hydraulic clutch release couldn't be easier. Engineered as a system, it takes the guesswork out, while providing maximum results.

Hydraulics Info

Type 2 - .700 bore x 1.4 stroke = Volume .539cu/ins Type 3 - .750 bore x 1.4 stroke = Volume .619cu/ins Small block Ford T-5/TKO cable fork aluminum bellhousing mounted kit (Perfect kit for those looking for a clutch cable upgrade) MD-910-1002 Hyd, External Slave, Type 2, T-5/TKO/TKX for Aluminum bellhousing

Small block Ford QuickTime bellhousing transmission mounted T-5, TKO, and TKX kits

QUICK TECH: click here for some troubleshooting tips Modern Driveline Inc. LF Series (Light Foot) Hydraulic Clutch Kits are engineered solutions for retrofitting hydraulic clutch actuation into classic cars and hot rods. Combining proven components with innovative design results in a modern solution to a common problem The LF Series Hydraulic Clutch System is designed as a replacement for the cabled clutch system commonly found in 79-93 5.0L Ford Mustangs. With the different external mounting brackets, the slave cylinder mounts behind the clutch of the fork clearing the bellhousing of the most popular T5/TKO/TKX small block Ford Aluminum bellhousing QuickTime Inc steel bellhousings. The LF series Master is compatible with many of the internal hydraulic throw-out bearings or CSC on the marketplace.
