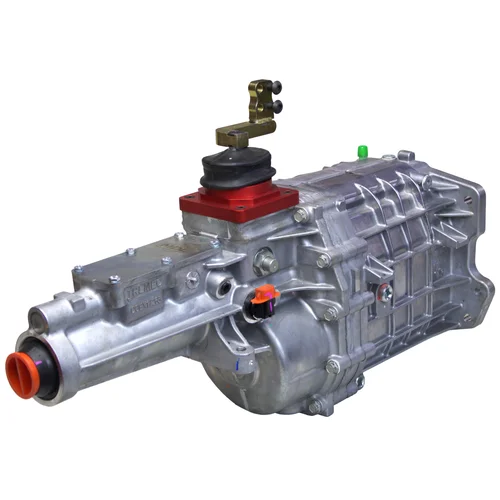

MDL TREMEC GM TKX 5-Speed | 2.87 First, 0.68 OD | Tall Body Front Shifter, 1” Left, 2.6” or 2.95” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.68) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1” Left, 2.6” or 2.95” forward Offset
• Shifter Stub Location: 9.73” or 10.08” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

When your GM A-body, muscle car, or console-equipped build demands the shifter in a specific location, the factory TKX shifter position rarely cooperates. This MDL-modified front shift TREMEC TKX solves that problem with a precisely engineered shift stub relocation that puts the lever exactly where your console or tunnel opening needs it - without cutting floors or fabricating custom linkages.

This exclusive MDL modification moves the shift stub to the front position with a 1" left and 2.6" or 2.95" forward offset from the transmission centerline. The front shift location places the shifter 9.73-10.08" from the bellhousing face, and the narrow shift body is specifically designed to clear factory shifter holes without floor modifications. This is the kind of precise positioning that console car builders need but cannot get from a stock TREMEC catalog transmission.

The close-ratio gear set (2.87 first, 1.89 second, 1.28 third, 1.00 fourth, 0.68 fifth) delivers performance-oriented spacing that keeps you in the powerband through every shift. Multi-cone synchronizers with hybrid carbon/bronze rings enable smooth, confident shifts up to 7,500 RPM, while the slimline end-loading case design provides superior tunnel clearance compared to older TKO transmissions. The ribbed three-piece aluminum housing delivers structural stiffness while keeping weight at approximately 99 lbs dry.

Both mechanical 7-tooth Ford-style speedometer cable drive and a built-in two-wire analog electronic speedometer sensor are included, covering vintage and modern instrumentation setups. The transmission requires Dexron III ATF (2.7-quart capacity) and bolts directly to any GM 3 or 4-speed Muncie bellhousing pattern. This modification is performed exclusively by MDL in Caldwell, Idaho and is not available through TREMEC's standard catalog.

What's Included

• TREMEC TKX 5-speed transmission (TCET17805) with 2.87/1.89/1.28/1.00/0.68 gear ratios
• High-performance short-throw billet aluminum shifter (front position tall body, 1” left, 2.6” or 2.95” forward offset)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
