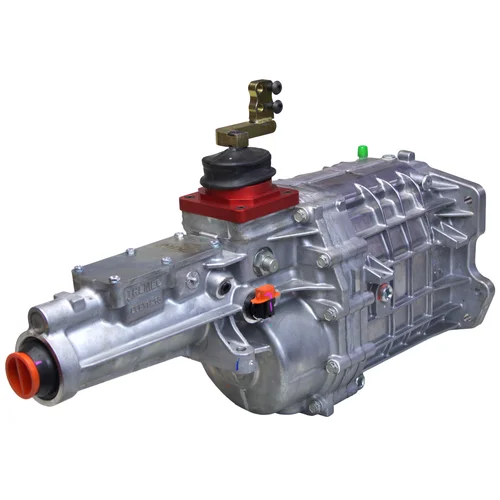

MDL TREMEC GM TKX 5-Speed | 3.27 First, 0.72 OD | Tall Body Front Shifter, 1” Left, 2.6” or 2.95” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing Ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with a 1” Left, 2.6” or 2.95” Forward Offset
• Shifter Stub Location: 9.73” or 10.08” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

When your build demands the shifter lever in a specific cockpit location, the standard TKX shifter positions often fall short. MDL solves this with an exclusive front-shift modification that moves the lever forward where you need it - ideal for bench-seat cars, tight interiors, or builds where console placement is critical. This custom configuration provides 1" of left offset plus your choice of 2.6" or 2.95" forward positioning to dial in the perfect shift location for your application.

The foundation is TREMEC's proven TKX platform with 600 lb-ft torque capacity and wide-ratio gearing (3.27 first, 0.72 overdrive) that delivers strong launches and highway-friendly cruising RPMs. Multi-cone synchronizers with hybrid sintered bronze and carbon rings enable smooth, fast shifts at engine speeds up to 8,000 RPM with shift points at 7,500 RPM - a significant upgrade over brass-ring designs that feel balky above 6,000 RPM. All gears and shafts are machined from special-grade ASTM 4615 steel for increased torque-carrying capacity.

The slimline end-loading case design provides superior tunnel clearance, fitting GM A-bodies like Chevelle, GTO, Cutlass, Nova, and Camaro without floor modifications. The narrow front-shift body clears standard shifter holes, eliminating the cutting and fabrication headaches that plague other 5-speed conversions. A ribbed, 3-piece aluminum housing delivers structural stiffness while gaskets at all flanges simplify installation and eliminate fluid leaks.

This GM-pattern TKX bolts directly to Muncie and Richmond bellhousings with a 26-spline input shaft and 31-spline output shaft. Both mechanical speedometer drive and analog electric speedometer output are built in. Recommended lubricant is Dexron-III ATF. This is an MDL-exclusive modification not available through TREMEC.

Kit Includes

• TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter (front position tall body, I” left, 2.6” or 2.95” forward offset)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
