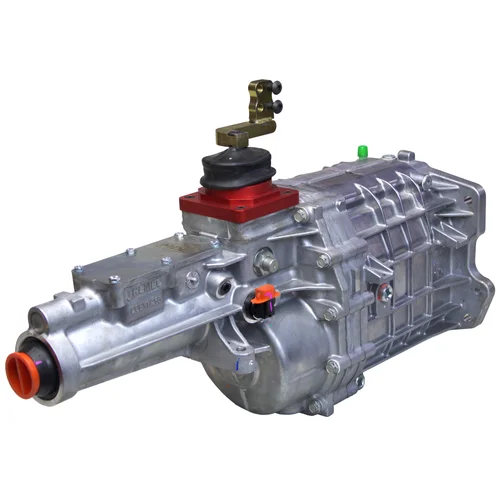

MDL TREMEC GM TKX Road Race 5-Speed | 2.87 First, 0.81 OD | Tall Body Front Shifter, 1” Left, 2.6” or 2.95” Forward Offset

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.81) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• Front Mount Tall Body Shifter with 1” Left, 2.6” or 2.95” Forward Offset
• Shifter Stub Location: 1” left of center line, 9.73” or 10.08” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

When shifter placement becomes the bottleneck in your road race build, this MDL-modified TREMEC TKX eliminates the guesswork. Standard TKX transmissions position the shifter where TREMEC designed it - not necessarily where your cockpit ergonomics demand it. This exclusive modification relocates the shift lever forward and left, putting it exactly where a driver needs it during high-RPM competition shifts without requiring tunnel surgery.

The custom shift stub provides 1 inch of left offset and 2.6" to 2.95" of forward positioning, bringing the shifter up through the floor in a location that works for road racing applications. The narrow shift body profile clears standard shifter holes, eliminating the fabrication work that typically accompanies shifter relocation in classic GM builds. The close ratio gear set (2.87/1.89/1.28/1.00/0.81) keeps engine speed in the powerband between shifts - critical when every tenth matters on track.

The TKX platform delivers 600 lb-ft of torque capacity through a 26-spline input shaft, with multi-cone synchronizers and hybrid carbon/bronze synchronizer rings engineered for smooth shifts at engine speeds up to 8,000 RPM. The slimline, end-loading case design provides significantly better tunnel clearance than the older TKO series, fitting into the tight confines of classic GM tunnels without floor modifications. The ribbed three-piece aluminum housing delivers structural stiffness while keeping weight at approximately 99 lbs dry.

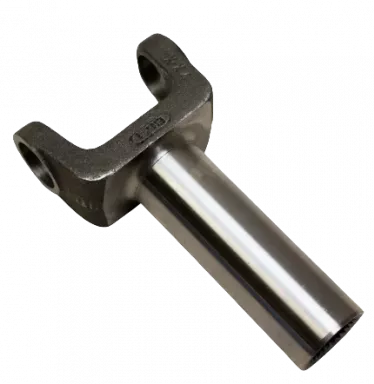

This front shift modification is not available through TREMEC - it is an MDL exclusive engineered specifically for builders who need precise shifter positioning in competition and road race applications. Compatible with GM Muncie 4-speed bellhousing bolt patterns, the 31-spline output accepts standard Ford C6-style slip yokes. Requires ATF Dexron III fluid, with provisions for both mechanical and electronic speedometer output.

What's Included

• TREMEC TKX 5-speed transmission (TCET17722) with 2.87/1.89/1.28/1.00/0.81 gear ratios
• High-performance short-throw billet aluminum shifter (front position tall body, 1” Left, 2.6” or 2.95” forward)
• Stamped-steel rear-position cover
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
