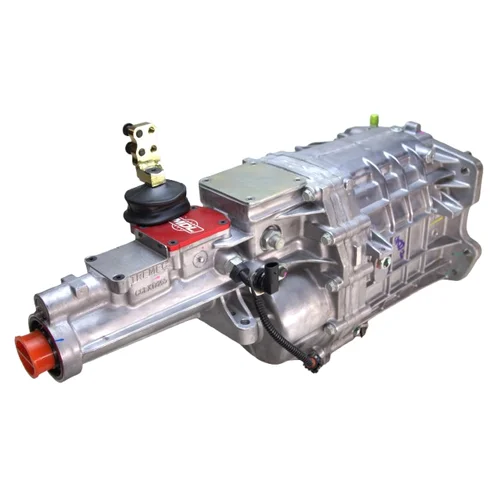

MDL TREMEC GM TKX 5-Speed | 3.27 First, 0.72 OD | 2” Left Side Shift Front Shifter, 1” Left, Straight Up or .5” Forward Offset Stub

Key Features

• 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
• Gearing Ratio (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
• 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
• Compact end-loaded aluminum case fits most GM tunnels without floor modifications
• Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
• Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
• ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
• GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
• GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
• Built-in reverse light switch and cruise control safety switch
• Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
• 99 lbs dry weight; 2.7-quart fluid capacity
• High-performance short-throw billet aluminum shifter included
• MDL side shift modification with a 1” Left, Straight Up or .5” forward offset stub - precise shifter placement without compromise
• Shifter Stub Location: 3” left of center line, 16.25” or 16.75” back from the bellhousing face
• MDL Exclusive - not available through TREMEC

Description

Shifter placement is one of the biggest headaches in a classic GM 5-speed swap. Factory console cutouts, bench seat builds, and tight tunnels all conspire to put the shifter exactly where you don't want it. This MDL Modified TREMEC TKX solves that problem with a custom side shifter stub that repositions the shift lever 1" to the left, straight up or .5" forward - putting your hand right where it needs to be without hacking up your floor.

The narrow shift body is engineered to clear existing shifter openings, eliminating the floor cutting that plagues so many swaps. You get precise shifter placement without the bodywork drama. This is an MDL exclusive modification not available through TREMEC or any other distributor.

Underneath the custom shifter work sits TREMEC's most advanced 5-speed platform. The TKX handles 600 lb-ft of torque and shifts cleanly at up to 7,500 RPM thanks to multi-cone synchronizers and hybrid sintered bronze/carbon synchronizer rings. All gears and shafts are machined from special-grade ASTM 4615 steel with wide gear widths for maximum durability. The ribbed 3-piece aluminum housing delivers outstanding structural stiffness while the end-loading design creates the slimmest 5-speed case on the market - critical for classic GM tunnel fitment.

The wide ratio gear set with 3.27 first gear provides strong launches, while the 0.72 overdrive fifth drops highway RPM for better fuel economy and reduced engine wear. Compatible with GM Muncie/Richmond bellhousing bolt pattern applications. Both mechanical and analog electric speedometer outputs are built in, along with reverse light and cruise control safety switches.

Transmission Includes

• TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
• High-performance short-throw billet aluminum shifter (2” left side shift front, 1” Left, Straight Up or .5” Forward offset stub)
• Gaskets for all mating surfaces
• Built-in reverse light switch (left side)
• Built-in cruise control safety switch (right side)
• Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
• OSS two-wire analog speedometer sensor
• MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
• Lifetime technical support
