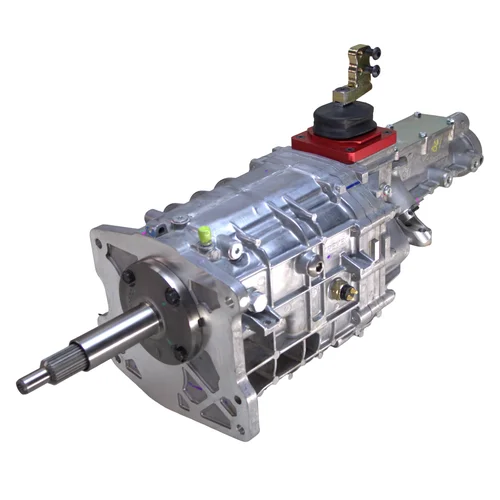

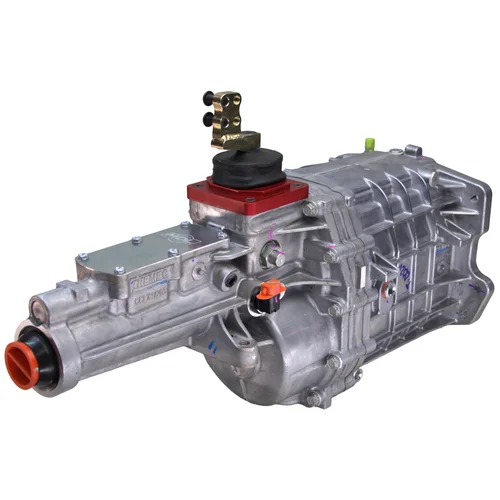

MDL TREMEC GM TKX 5-Speed | 2.87 First, 0.68 OD | Short Body Front Shifter, 1” or 1.5” Backward Offset
Key Features
- 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
- Close-ratio gearing (2.87, 1.89, 1.28, 1.00, 0.68) balances strong launches with relaxed highway cruising
- 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
- Compact end-loaded aluminum case fits most GM tunnels without floor modifications
- Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
- Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
- ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
- GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
- GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
- Built-in reverse light switch and cruise control safety switch
- Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
- 99 lbs dry weight; 2.7-quart fluid capacity
- High-performance short-throw billet aluminum shifter included
- Front Mount Short Body Shifter with 1” or 1.5” Backward Offset
- Shifter Stub Location: 13.68” or 14.18” back from the bellhousing face
- MDL Exclusive - not available through TREMEC
Description
This MDL-modified TREMEC TKX solves the shifter placement problem that plagues many classic GM conversions. The custom 1" or 1.5" backward offset shift stub positions your shifter lever exactly where it needs to be - no guesswork, no cutting, no clearance headaches. The narrow shift body design clears factory shifter holes without enlarging them, taking all the worry out of your manual transmission swap.
Built on TREMEC's TKX platform, this transmission delivers serious performance with 600 lb-ft torque capacity and 8,000 RPM capability. The close-ratio gear set (2.87, 1.89, 1.28, 1.00, 0.68) provides aggressive acceleration with tight gear spacing for spirited driving and road racing applications. Multi-cone synchronizers with hybrid sintered bronze and carbon rings enable safe, smooth shifts at 7,500 RPM - eliminating the notchy feel of older five-speed designs.
The TKX's end-loading case design creates a slimmer profile for superior tunnel clearance compared to older transmissions like the TKO. The ribbed, three-piece aluminum housing (main case, intermediate plate, and rear extension) provides outstanding structural stiffness with fewer seams. All gears and shafts are made from special grade steel (ASTM 4615) with oversized gear widths for increased torque capacity and extended gear life. The internal 3-rail shift system with steel shift forks delivers a robust, precise shift feel.
The 26-spline input shaft bolts directly to your existing GM Muncie-pattern bellhousing, while the 31-spline output shaft accepts Ford C6-style slip yokes. Both mechanical (7-tooth cable drive) and electronic (OSS two-wire analog sensor) speedometer outputs are built in. Fluid capacity is 2.7 quarts using Dexron III ATF or equivalent. This offset shifter configuration is an MDL exclusive - not available through TREMEC or other distributors.
Kit Includes
- TREMEC TKX 5-speed transmission (TCET17805) with 2.87/1.89/1.28/1.00/0.68 gear ratios
- High-performance short-throw billet aluminum shifter (front position short body, 1” or 1.5” offset)
- Stamped-steel rear-position cover
- Gaskets for all mating surfaces
- Built-in reverse light switch (left side)
- Built-in cruise control safety switch (right side)
- Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
- OSS two-wire analog speedometer sensor
- MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
- Lifetime technical support
