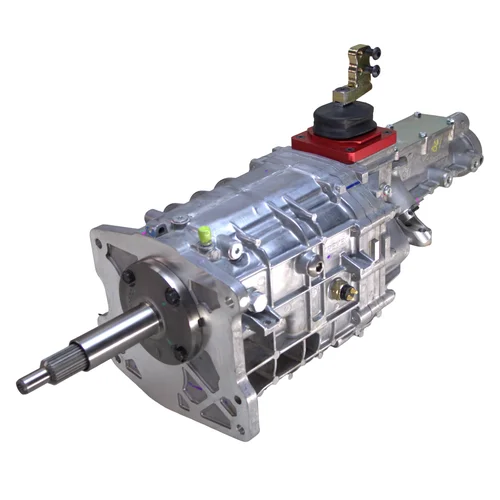

MDL TREMEC GM TKX 5-Speed | 3.27 First, 0.72 OD | Short Body Front Shifter, 1” or 1.5” Backward Offset
Key Features
- 600 lb-ft torque capacity with 7,500 RPM shift capability and 8,000 RPM engine speed rating
- Close-ratio gearing (3.27, 1.98, 1.34, 1.00, 0.72) balances strong launches with relaxed highway cruising
- 26-spline input shaft (1-1/8 in. diameter) and 31-spline output shaft for added strength
- Compact end-loaded aluminum case fits most GM tunnels without floor modifications
- Ribbed 3-piece housing (main case, intermediate plate, rear extension) for structural stiffness
- Multi-cone synchronizers with sintered carbon/bronze hybrid rings for smooth high-RPM shifts
- ASTM 4615 special-grade steel gears and shafts with caged needle bearings in all gear positions
- GM Muncie bellhousing bolt pattern - direct swap for 3-speed and 4-speed applications
- GM 0.590-inch pilot tip with 1.375-inch OD throwout bearing guide tube
- Built-in reverse light switch and cruise control safety switch
- Dual speedometer outputs: mechanical 7-tooth Ford gear (adaptable to GM) plus OSS two-wire analog sensor
- 99 lbs dry weight; 2.7-quart fluid capacity
- High-performance short-throw billet aluminum shifter included

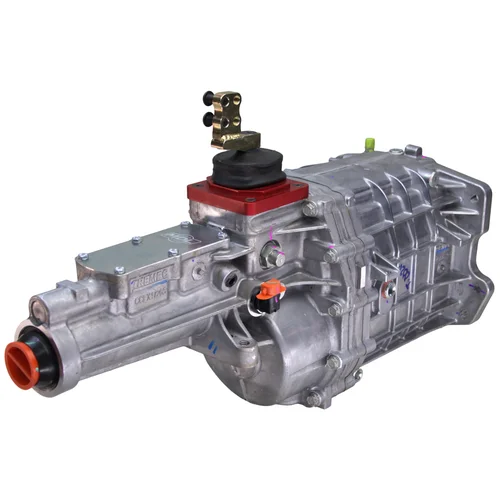

- Front Mount Short Body Shifter with a 1” or 1.5” Backward Offset
- Shifter Stub Location: 13.68” or 14.18” back from the bellhousing face
- MDL Exclusive - not available through TREMEC
Description
The factory TKX shifter location often lands in awkward spots in classic muscle cars, forcing floor modifications or compromised ergonomics. MDL solves this with a custom 1" or 1.5" backward offset shift stub that repositions the shifter lever exactly where your hand naturally falls. The narrow shift body design clears standard shifter openings without cutting the floor -- taking all the worry and hassle out of shifter placement.
Built on TREMEC's proven TKX platform, this transmission delivers close ratio gearing (3.27, 1.98, 1.34, 1.00, 0.72 overdrive) designed to keep you in the powerband through technical sections on the road course while the 0.72 overdrive provides comfortable highway cruising capability. The TKX is rated for 600 ft-lb of torque and features enhanced multi-cone synchronizers with hybrid carbon/bronze rings that handle aggressive 8,000 RPM engine speeds with smooth, fast shifts at 7,500 RPM.
The slimline end-loading case design provides superior tunnel clearance compared to the older TKO, fitting GM A-bodies like Chevelles, GTOs, Camaros, and Novas without tunnel modifications in most applications. The ribbed 3-piece aluminum housing delivers outstanding structural stiffness, while oversized gear widths and caged needle bearings in all positions ensure durability under hard use. The 26-spline input shaft and 31-spline output shaft provide bulletproof reliability for high-performance builds.
This transmission bolts directly to standard GM Muncie/Richmond bellhousing patterns. Both mechanical and analog electric speedometer outputs are included. Recommended fluid is ATF Dexron III with a 2.7-quart capacity. This MDL-exclusive modification is not available through TREMEC.
Kit Includes
- TREMEC TKX 5-speed transmission (TCET18083) with 3.27/1.98/1.34/1.00/0.72 gear ratios
- High-performance short-throw billet aluminum shifter (front position short body, 1” or 1.5” backward offset)
- Stamped-steel rear-position cover
- Gaskets for all mating surfaces
- Built-in reverse light switch (left side)
- Built-in cruise control safety switch (right side)
- Mechanical speedometer drive gear (7-tooth Ford pattern, adaptable to GM)
- OSS two-wire analog speedometer sensor
- MDL extended warranty: manufacturer warranty plus 1 additional year with 1-year grace period
- Lifetime technical support
