Key Features
- Dual ceramic friction surfaces deliver aggressive bite and higher coefficient of friction than organic or Kevlar materials
- 600 lb-ft torque rating for high-horsepower Ford applications
- 10.4" metric bolt pattern with 8mm pressure plate bolts fits Ford Mod Motor and 5.0L applications
- 10-spline x 1-1/16" input shaft configuration
- Sprung hub design for smooth engagement and drivetrain vibration dampening
- MDL ceramics incorporate iron pieces that increase friction as temperature rises
- Double-riveted construction for durability under high-stress conditions
- Hand-assembled in-house with every unit checked for accuracy before shipping
- Mechanical throw-out bearing profile for cable or mechanical linkage systems
- Performance Proven: tested in real racing conditions on and off the track
- 1-year free-from-defect warranty
- Made in the USA
Description
When you need maximum holding power in a 10.4" metric Ford clutch package but can't step up to a larger diameter disk or heavier pressure plate, ceramic friction surfaces are the answer. This Superior Series clutch assembly delivers dual ceramic facings on both the flywheel and pressure plate sides, providing the hard-hitting bite needed for higher horsepower applications, quicker shifts in road racing, and aggressive launches in drag racing where organic materials fall short.
Ceramics and semi-metallics have a higher coefficient of friction than organic or Kevlar materials MDL offers, so they bite harder and hold more power given the same clamping force from the diaphragm pressure plate. MDL's ceramic facings incorporate iron pieces that actually increase friction as the material temperature climbs--making this clutch ideal for high-heat racing applications that would cause other materials to fade or slip. These surfaces are specifically desired in racing applications for how quickly they engage and their ability to handle extreme heat and abuse.
Every Superior Series clutch disk is hand-assembled at MDL's facility using the finest components available. Each unit is double-riveted for durability and checked for accuracy before shipping, so you receive a ready-to-install premium product right out of the box. The sprung hub design provides smooth engagement characteristics while absorbing drivetrain vibration. This complete assembly fits Ford applications using the 10.4" metric clutch pattern with 10-spline x 1-1/16" input shafts and mechanical clutch actuation (cable or mechanical linkage).
Rated at 600 lb-ft of torque, this clutch is ideal for street/strip builds, autocross, and dedicated drag racing applications. Backed by MDL's 1-year free-from-defect warranty. Made in the USA.

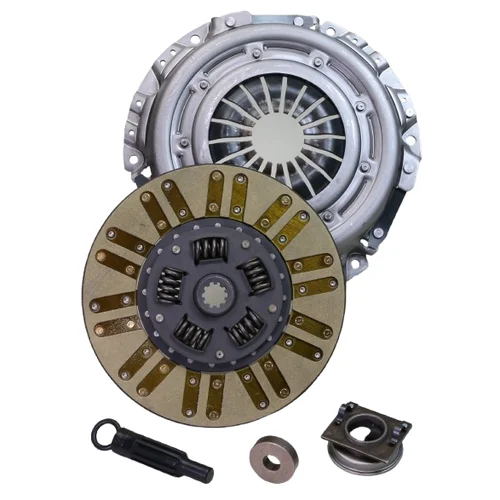

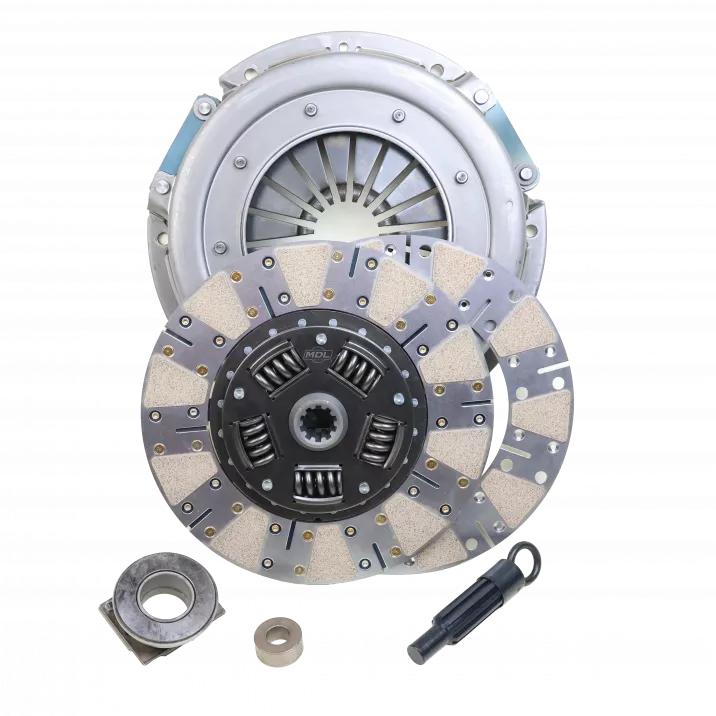

Kit Includes
- Diaphragm pressure plate with 10.4" metric bolt pattern
- Single clutch disk with ceramic/ceramic facings (sprung hub)
- Mechanical profile throw-out bearing
- Pilot bearing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime technical support
