Key Features
- Kevlar/Kevlar dual-faced clutch disc - superior heat resistance and 2-3x longer life than organic facings
- Heavy-duty diaphragm pressure plate engineered for 26-spline input shafts
- 10.4" metric bolt pattern with dowel pins for precise pressure plate alignment
- 26 x 1-1/8" spline configuration with sprung hub design for smooth engagement
- 550 ft-lb torque rating - built for performance street and open track applications
- Hand-assembled in-house with double quality verification before shipping
- Uses 8mm pressure plate bolts for secure mounting to metric flywheels
- Made in the USA - backed by a 1-year free-from-defect warranty
Description
When you upgrade to a TREMEC transmission with a 26-spline input shaft, your clutch needs to keep pace. This Superior 10.4" metric clutch assembly delivers the durability and consistent engagement that performance street driving and open track sessions demand - without the grabby, on-off behavior of ceramic discs.
The Kevlar/Kevlar dual-faced disc is the key differentiator here. Kevlar facings last 2-3 times longer than organic materials while maintaining smooth, progressive engagement. The material dissipates heat efficiently and recovers well from high-temperature abuse - overheat a Kevlar disc and it simply needs to cool down and re-bed rather than glazing or failing. The sprung hub design absorbs drivetrain shock, eliminating chatter and providing the streetable feel you need for daily driving between track days.
The heavy-duty diaphragm pressure plate delivers reliable clamping force across the full disc diameter without the knee-destroying pedal effort of old three-finger Long-style clutches. The 10.4" metric bolt pattern with dowel pins ensures precise pressure plate alignment to your flywheel, eliminating the binding and hot spots that plague misaligned components. 8mm pressure plate bolts provide secure mounting to metric flywheels.
Every Superior clutch is hand-assembled at MDL's facility in Caldwell, Idaho. Each component is checked and double-checked for accuracy before it goes in the box - you receive a ready-to-install premium piece, not a box of parts to sort through. The complete kit includes everything needed for installation: mechanical throw-out bearing, pilot bearing, and alignment tool. Made in the USA and backed by a 1-year free-from-defect warranty.

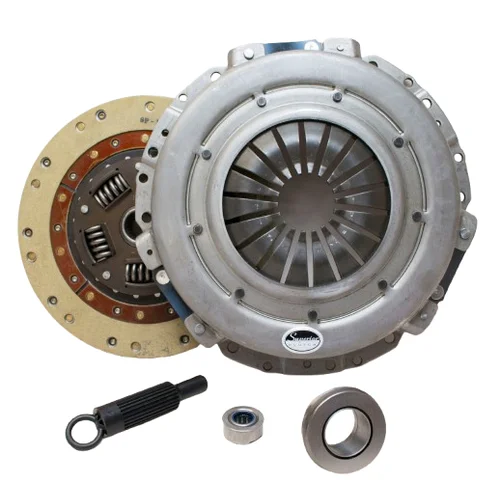

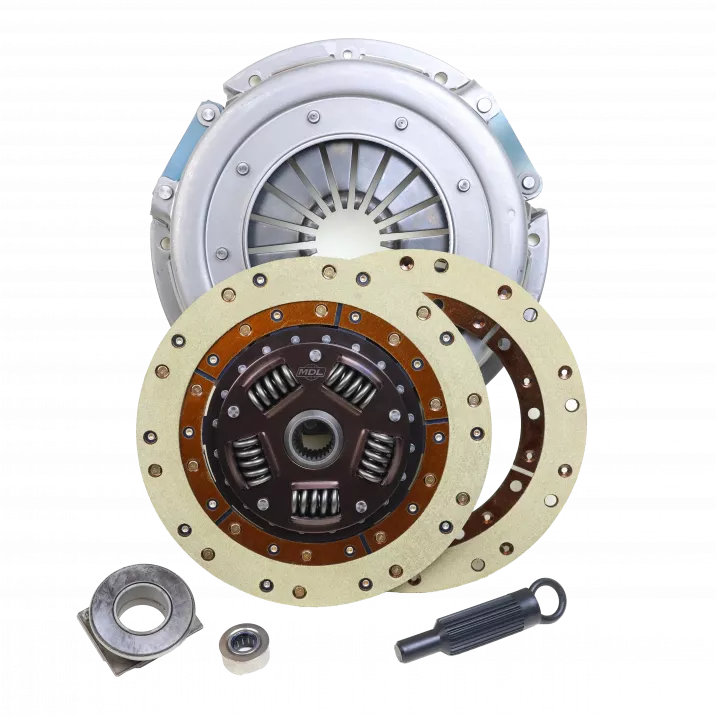

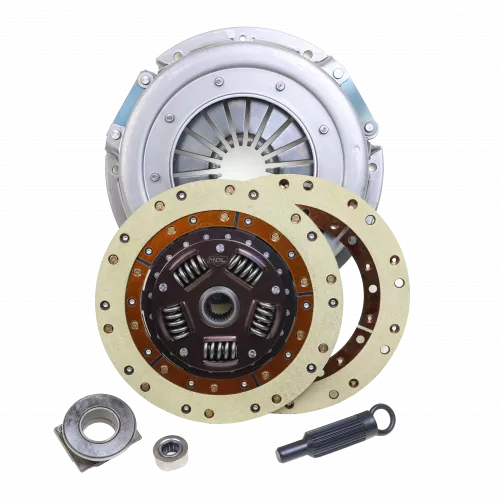

Kit Includes
- Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pins
- Single Kevlar/Kevlar faced clutch disc - 26 x 1-1/8" spline, sprung hub, double riveted
- Mechanical throw-out bearing
- Pilot bearing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime technical support
