Key Features
- 600 lb-ft torque capacity - ideal for high-horsepower Ford builds where diameter is limited
- Ceramic friction facings on both sides deliver aggressive bite and extreme heat resistance
- 10-spline disc (1-1/16" input) fits TREMEC TKX, T5, and stock Ford transmissions
- 10.4" metric bolt pattern with alignment pins - direct fit for Ford 5.0L HO and Modular motor flywheels
- Hand-assembled in-house with double-riveted construction for durability under hard launches
- Diaphragm pressure plate provides consistent clamp load across RPM range
- Sprung hub disc dampens drivetrain shock for improved longevity
- Cable release profile throwout bearing included - ready for factory cable clutch systems
- Performance Proven - tested in drag racing and road course competition
- 1-year free-from-defect warranty
- Made in the USA
Description
When you need maximum torque capacity from a 10.4" clutch package but can't step up to a larger diameter disc, ceramic friction surfaces deliver the aggressive holding power your high-horsepower Ford demands. This Superior clutch set solves the size-versus-power problem with ceramic facings on both sides of the disc, creating a higher coefficient of friction than organic or Kevlar materials while handling the extreme temperatures that hard launches and aggressive road course sessions generate.
The ceramic friction material includes iron particles that actually increase friction as operating temperatures climb - exactly what drag racing launches and sustained high-load driving demand. Where organic clutches fade under heat, ceramics dig in harder. This makes them the go-to choice when you're making serious power but your engine combination limits you to a sub-11" disc diameter. The three attributes that determine clutch torque capacity are surface area, coefficient of friction, and pressure plate clamping force. When you can't increase disc size, ceramic surfaces let you boost the friction coefficient instead.
Every Superior clutch is hand-assembled at MDL's facility with double-riveted disc construction that maintains precise facing alignment under extreme loads. The sprung hub design dampens drivetrain shock during engagement, reducing stress on the transmission input shaft and improving overall durability. The included cable release profile throwout bearing bolts directly to factory cable clutch actuation systems found on '86-'95 5.0L Mustangs and similar Ford applications.
This clutch set fits Ford applications using the 10.4" metric bolt pattern with 8mm pressure plate bolts and three alignment pins - the pattern found on Ford 5.0L HO engines and Modular motors. The 10-spline disc matches TREMEC TKX 10-spline input shafts, T5 transmissions, and factory Ford gearboxes. Built in Caldwell, Idaho, and backed by lifetime technical support.

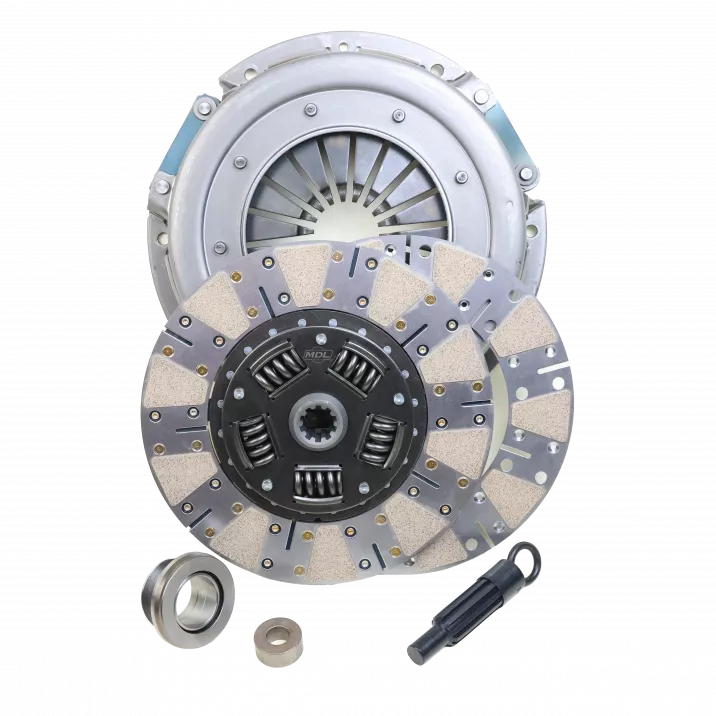

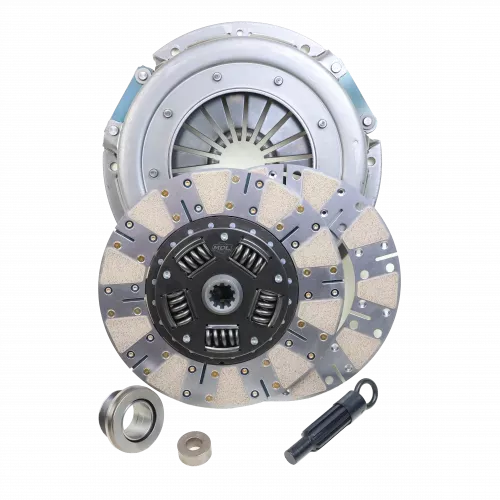

Kit Includes
- Diaphragm pressure plate (10.4" metric bolt pattern with alignment pins)
- 10.4" clutch disc with ceramic facings on both sides, sprung hub, 10 x 1-1/16" spline
- Cable release profile throwout bearing
- Pilot bearing
- Clutch disc alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
