Key Features
- Dual Kevlar friction facings on both flywheel and pressure-plate sides for consistent engagement and heat resistance
- Heavy-duty diaphragm pressure plate matched to 26-spline x 1-1/8" input hub
- Cable-profile throwout bearing also compatible with hydraulic release systems
- 10.4" metric bolt pattern with alignment dowel pin holes - uses 8mm pressure plate bolts
- Hand-assembled in-house with double-riveted construction for balance and durability
- Sprung hub design absorbs driveline shock for smoother engagement
- 500 ft-lb torque capacity for performance street and open tracking applications
- 1-year free-from-defect warranty
Description
When you're building a Ford with a 26-spline transmission and need a clutch that handles real power without fighting you in traffic, this Superior 10.4" metric kit delivers. The dual Kevlar friction surfaces provide aggressive holding power with manageable street manners - Kevlar's thermal stability means consistent engagement under repeated hard use without the grabby, on-off characteristics of ceramic facings. This is the clutch for performance street builds and open track days where you need confidence in the drivetrain, not a sore left leg.
MDL builds every Superior clutch disk in-house with double-riveted construction - not bonded like cheaper alternatives. This assembly method ensures precise balance across the disc, eliminates hot spots that cause premature failure, and maintains structural integrity under high heat and repeated engagement cycles. The heavy-duty diaphragm pressure plate increases clamp load over stock units to support the 500 ft-lb torque rating.
The 26-spline x 1-1/8" input hub with sprung center fits modern TREMEC TKX, TKO-600, and T5 transmissions, as well as period-correct '86-'95 Ford 5.0L applications with upgraded transmissions. The cable-profile throwout bearing is designed for Ford cable-actuated systems but also works with hydraulic release setups, giving you flexibility for transmission swaps and clutch system upgrades.
Every component is checked and double-checked for accuracy before shipping - you receive a ready-to-install premium assembly right out of the box. Performance Proven products have survived the rigorous challenges of racing on and off the track. Made in the USA and backed by a 1-year free-from-defect warranty.

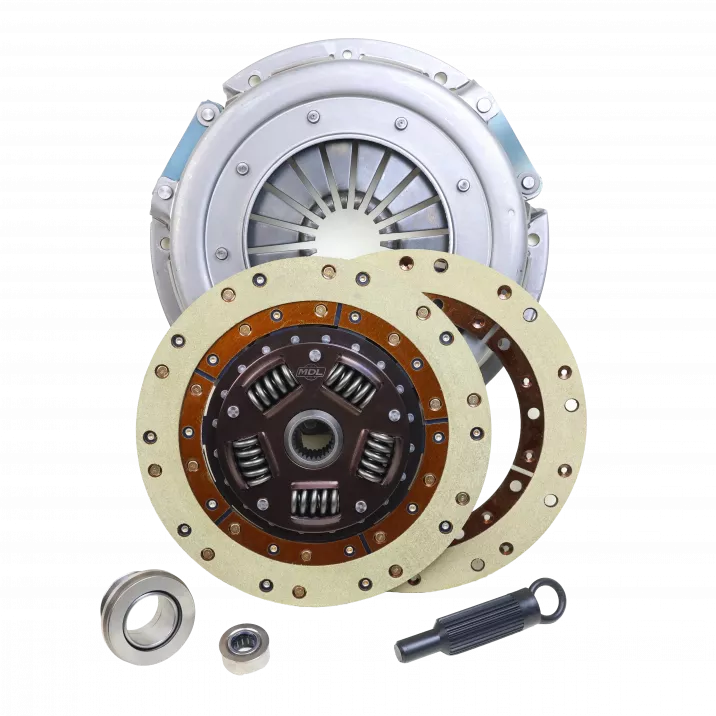

Kit Includes
- Heavy-duty diaphragm pressure plate - 10.4" metric bolt pattern with dowel pin holes
- 10.4" clutch disc with dual Kevlar friction facings - sprung hub
- 26-spline x 1-1/8" input shaft hub
- Cable-profile throwout bearing (hydraulic compatible)
- Pilot bearing
- Clutch disc alignment tool
- Installation and break-in instructions
- Lifetime technical support
