Key Features
- Hand-built 10.5-inch organic/organic disk with sprung hub for smooth engagement and extended service life
- Diaphragm pressure plate with 11-5/8-inch bolt pattern for direct AMC flywheel bolt-up
- 10-spline x 1-1/16-inch input shaft compatibility for standard AMC transmissions
- 250 HP torque rating for reliable street performance
- Mechanical release system for simplified clutch linkage
- Complete kit with pressure plate, disk, pilot bushing, and alignment tool
- Every disk hand-assembled in-house for exacting tolerances and quality control
- 1-year free-from-defect warranty with lifetime technical support
- Made in the USA
Description
When your AMC's factory clutch can't keep up with increased power or has simply worn out, the MDL Superior 10.5-inch clutch set delivers the holding capacity and smooth engagement your drivetrain demands. This single-disk setup is purpose-built for AMC applications with mechanical clutch actuation, providing reliable torque transfer for street-driven builds up to 250 horsepower.
The heart of this kit is the hand-built organic/organic disk featuring a sprung hub design that smooths engagement while absorbing drivetrain shock. Unlike mass-produced alternatives, every Superior clutch disk is assembled by hand at MDL's facility in Caldwell, Idaho--ensuring proper balance, precise tolerances, and consistent quality before it ever leaves the shop. The organic facings on both sides provide excellent modulation for daily driving while delivering dependable holding power.
The diaphragm pressure plate offers superior clamping force distribution compared to traditional three-finger designs, resulting in lighter pedal effort and longer component life. With its 11-5/8-inch bolt circle, this pressure plate bolts directly to AMC flywheels using the factory pattern. The mechanical release system eliminates hydraulic complexity while maintaining predictable, smooth operation.
This complete kit includes everything needed for installation except throwout and pilot bearings. Each Superior clutch set is backed by MDL's 1-year free-from-defect warranty and lifetime technical support. Made in the USA.

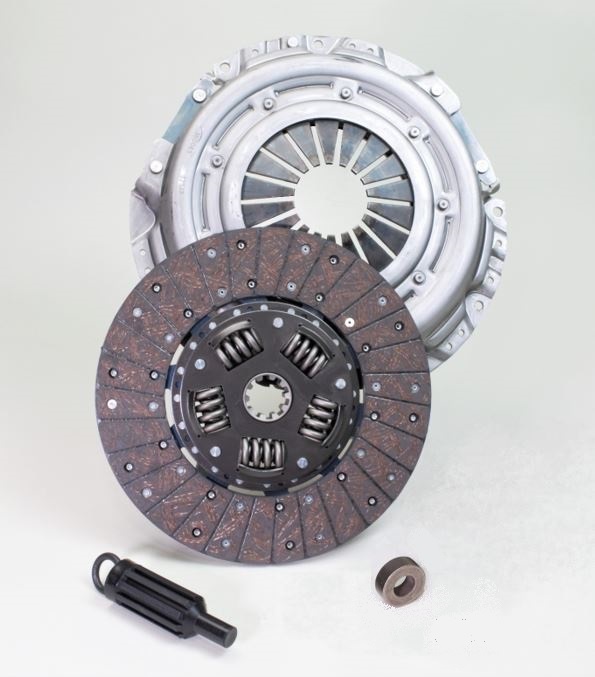

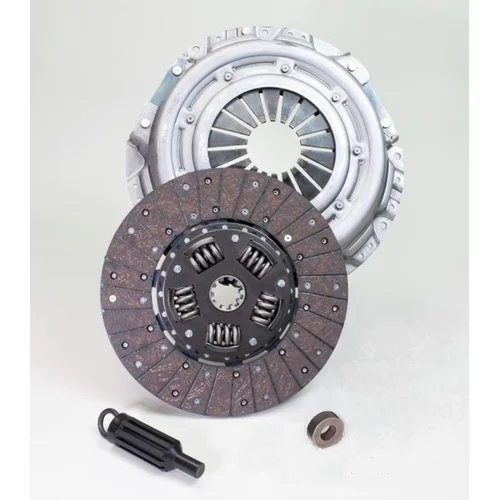

Kit Includes
- Diaphragm pressure plate with 11-5/8-inch bolt pattern
- 10.5-inch organic/organic clutch disk with sprung hub (10-spline x 1-1/16-inch)
- Bronze pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime technical support
