Key Features
- Ceramic/ceramic friction surfaces rated at 650 lb-ft torque capacity
- Dual-drilled pressure plate fits both 11-inch long (3-3/8 inch bolt circle) and 12-3/8 inch diaphragm patterns
- 26-spline x 1-1/8 inch disc hub for TREMEC TKX, TKO, and T5 input shafts
- Diaphragm pressure plate with finger profile optimized for hydraulic release systems
- Hand-assembled in-house with precision tolerances verified before shipping
- Made in the USA with 1-year free-from-defect warranty
Description
When your Ford build makes serious power, organic friction materials fade and slip under heat. The Superior Ceramic/Ceramic Clutch Kit delivers 650 lb-ft of torque capacity with friction surfaces that thrive on high temperatures, making it ideal for modified engines, strip duty, or aggressive street applications where holding power matters most. Ceramic facings on both sides of the disc provide a higher friction coefficient than organic materials, delivering positive engagement characteristics that stay consistent launch after launch.
This dual-pattern design solves a common Ford fitment headache. The pressure plate is drilled for both the 11-inch long pattern (3-3/8 inch bolt spacing) and the 12-3/8 inch diaphragm pattern, giving you flexibility during flywheel selection. The diaphragm-style pressure plate reduces pedal effort compared to traditional long-finger units while maintaining the precise modulation needed for consistent launches. The finger profile is specifically engineered for hydraulic release systems, ensuring proper throwout bearing engagement and release characteristics.
Every MDL Superior clutch disc is hand-built in-house to ensure exacting tolerances and flawless operation before it ships. The 26-spline x 1-1/8 inch hub matches TREMEC TKX, TKO, and T5 input shafts. Note that ceramic/ceramic construction trades some street drivability for maximum holding power and heat resistance — this kit is best suited for performance-focused builds rather than daily-driven vehicles.

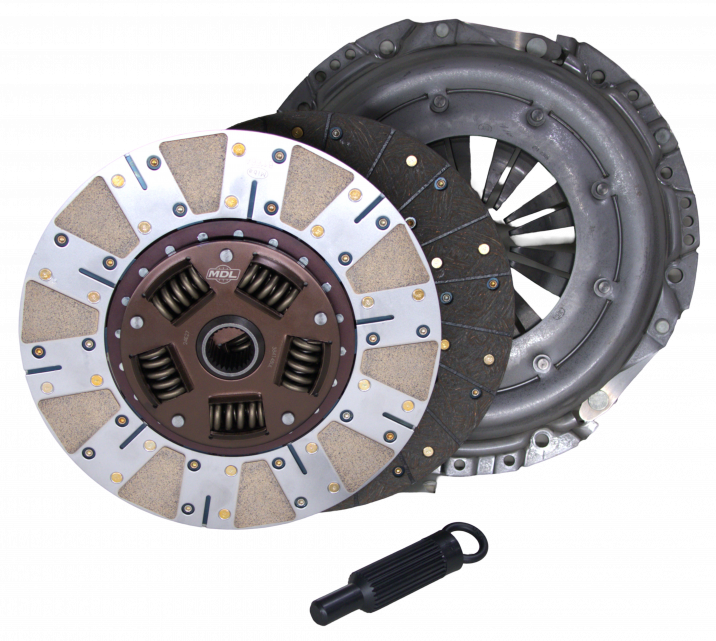

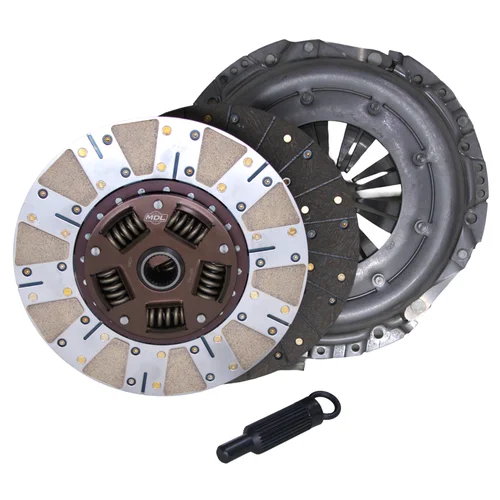

Kit Includes
- Dual-pattern diaphragm pressure plate (11-inch long and 12-3/8 inch patterns) with hydraulic finger profile
- 11-inch ceramic/ceramic friction disc with 26-spline x 1-1/8 inch hub
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime technical support
Note: This kit does not include a throwout bearing or pilot bearing.
