Key Features
- Full Kevlar/Kevlar disk facings deliver twice the service life of organic clutch facings
- Diaphragm pressure plate with 3-1/8" bolt hole spacing and 5/16" pressure plate bolts
- Fully sprung hub with marcel spring for superior dampening and progressive clutch control
- 10 spline 1-1/16" input shaft hub matches TREMEC T5 transmission conversions
- Cable-actuated throwout bearing included for mechanical linkage applications
- 400 ft-lbs torque capacity ideal for performance street and open track use
- Hand-assembled in-house by MDL with 1-year defect warranty
- Made in the USA
Description
Stock organic clutch facings burn out fast under spirited driving, leaving you with glazed surfaces, inconsistent engagement, and a shortened service life. The MDL Superior Ford 10" Long Pattern Clutch Kit solves these problems with dual Kevlar facings that deliver consistent pedal feel and double the lifespan of conventional organic disks—without sacrificing street manners.
The engineering starts with the clutch disk itself. Full Kevlar facings on both the pressure plate and flywheel sides provide progressive engagement characteristics that work equally well in stop-and-go traffic or under hard acceleration. The fully sprung hub incorporates dampening springs to absorb driveline shock, while the marcel spring ensures complete clutch release and smooth power transfer. This combination eliminates the grabby, on-off engagement typical of racing clutches while still delivering 400 ft-lbs of holding power for modified small blocks.
The diaphragm pressure plate features MDL's precise 3-1/8" bolt spacing pattern with 5/16" bolts, ensuring proper fit to Ford 10" long pattern flywheels commonly found on 289/302 applications. The included cable throwout bearing is purpose-built for mechanical linkage conversions—perfect for T5 swaps retaining cable clutch actuation. The 10 spline 1-1/16" hub matches the input shaft on 10-spline TREMEC T5 transmissions.
Every MDL Superior clutch is hand-assembled in-house to exact tolerances before shipping, ensuring flawless operation right out of the box. Built for performance street driving and open track days. Made in the USA and backed by MDL's 1-year defect warranty.

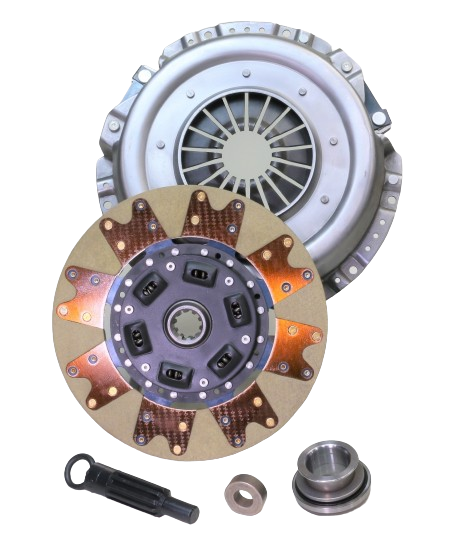

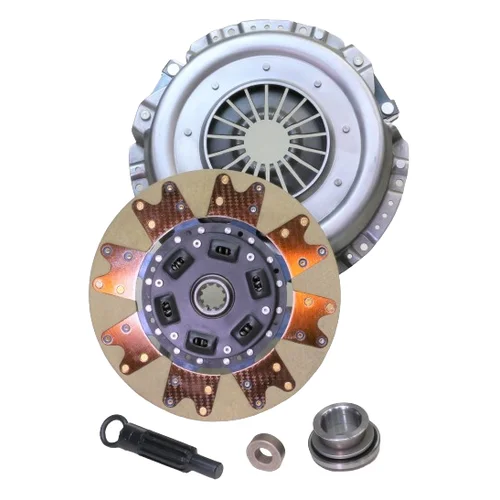

Kit Includes
- Diaphragm pressure plate with 3-1/8" bolt spacing and 5/16" bolts
- Kevlar/Kevlar clutch disk with 10 spline 1-1/16" hub and fully sprung center
- Cable throwout bearing
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year defect warranty
- Lifetime technical support
