Key Features
- Heavy-duty diaphragm pressure plate with 10.4" metric bolt pattern and 8mm hardware -- built to exceed OEM clamping force
- Kevlar/steel-backed organic disc facings -- Kevlar durability meets smooth organic engagement for street-performance driving
- 26 x 1-1/8" splined clutch disc with sprung hub -- absorbs driveline shock and reduces chatter
- 500 ft-lb torque capacity -- handles performance street and open-track applications
- Mechanical throwout bearing included -- works with mechanical linkage-style release systems
- Hand-assembled in-house with double-checked tolerances -- ready to install right out of the box
- 1-year free-from-defect warranty -- backed by MDL quality assurance
- Made in the USA
Description
The Superior 10.4" Metric HD Clutch Set solves the component-matching challenge for Ford performance builds running the 10.4" metric pressure plate bolt pattern with a 26-spline transmission. This pattern -- using 8mm pressure plate bolts and alignment dowels -- is distinct from the more common 10.5" and 11" Ford patterns, and demands precision-matched components for proper engagement and longevity.
The disc design pairs Kevlar on the flywheel side with steel-backed organic facing on the pressure plate side. The Kevlar material delivers durability and consistent friction characteristics under heat, while the steel backing prevents disc warping under repeated clamping loads. The organic facing on the opposite side provides the smooth, progressive engagement that daily-driven performance vehicles demand -- no harsh grab or chatter. The sprung hub design further dampens driveline shock during engagement, critical for street cars that see stop-and-go traffic alongside spirited driving.
The heavy-duty diaphragm pressure plate increases clamping force over stock units, pushing this kit to a 500 ft-lb torque capacity that handles performance street and open-track duty. The included mechanical throwout bearing is profiled for mechanical linkage release systems, making this kit the right choice for builds without hydraulic or cable-actuated clutch setups.
Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility. Components are checked and double-checked for accuracy before shipping, ensuring the disc runs true, the pressure plate operates smoothly, and tolerances meet MDL's exacting standards. The result is a ready-to-install premium clutch backed by a 1-year free-from-defect warranty and made in the USA.

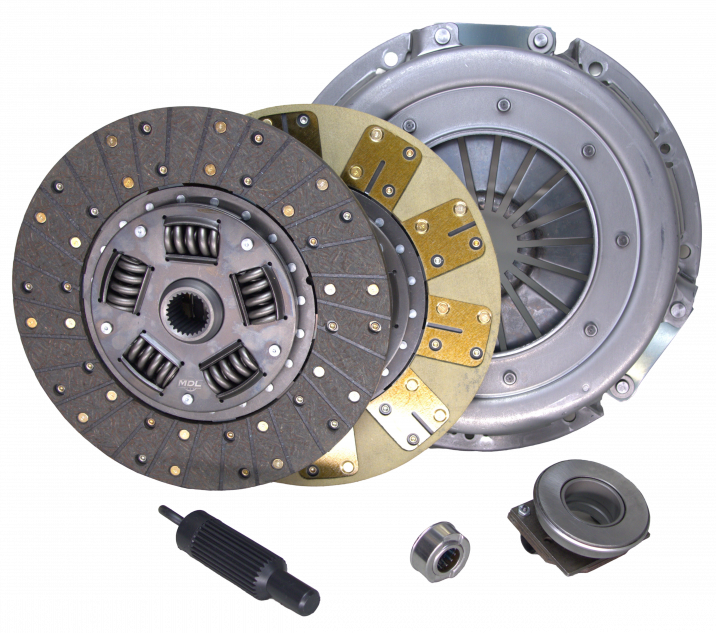

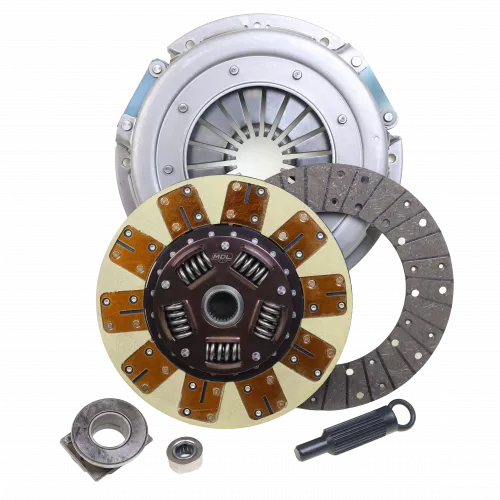

Kit Includes
- Heavy-duty diaphragm pressure plate -- 10.4" metric bolt pattern with 8mm hardware and alignment dowels
- 10.4" clutch disc -- Kevlar/steel-backed organic facings, 26 x 1-1/8" splined sprung hub
- Mechanical throwout bearing
- Pilot bearing
- Clutch disc alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
