Superior Ford 10.4" Metric HD Clutch Set | Kevlar/Steel-Backed Organic | 26-Spline Cable
Key Features
- Hybrid friction material - Kevlar facing on pressure plate side, steel-backed organic on flywheel side for aggressive bite with smooth engagement
- 450 ft-lbs torque capacity handles serious small-block Ford power
- Diaphragm-style pressure plate with 10.4" metric bolt pattern and alignment dowel pins
- 26-spline x 1-1/8" input shaft compatibility for TKO, TKX, 3550, and T-5 transmissions
- Sprung hub design absorbs driveline shock and protects transmission components
- Cable-actuated throw-out bearing included for mechanical release systems
- Hand-built in-house with double-checked tolerances for ready-to-install precision
- Made in the USA with 1-year defect-free warranty
Description
MDL's Superior Series clutch sets deliver the precise balance of engagement characteristics that performance street builds demand. This 10.4" metric clutch features a hybrid friction material strategy - Kevlar facing on the pressure plate side provides aggressive bite and exceptional heat resistance, while steel-backed organic material on the flywheel side delivers smooth engagement and extended service life. The result is a clutch that hooks up decisively under power yet remains streetable for daily driving.
The diaphragm-style pressure plate uses Ford's 10.4" metric bolt pattern with 8mm bolts and precision dowel pins for rock-solid alignment and zero chatter. With a 450 ft-lbs torque capacity, this clutch handles serious small-block Ford power while the sprung hub absorbs the driveline shock that would otherwise stress transmission synchronizers and gears. The 26-spline x 1-1/8" disc fits TKO, TKX, 3550, and T-5 transmissions equipped with the larger input shaft.
Every Superior clutch disc is hand-assembled in MDL's Caldwell, Idaho facility where tolerances are verified twice before shipping. This attention to detail ensures proper balance, smooth engagement, and long service life right out of the box. The kit includes everything needed for installation - precision pilot bearing, cable-actuated throw-out bearing, and alignment tool. Backed by MDL's 1-year defect-free warranty and made in the USA.

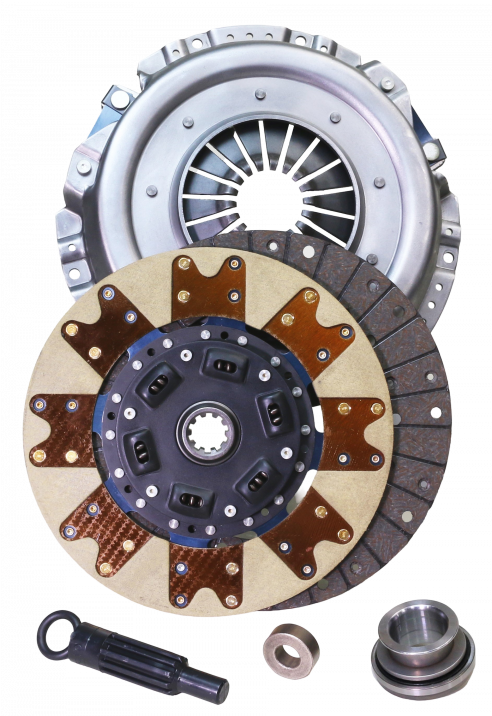

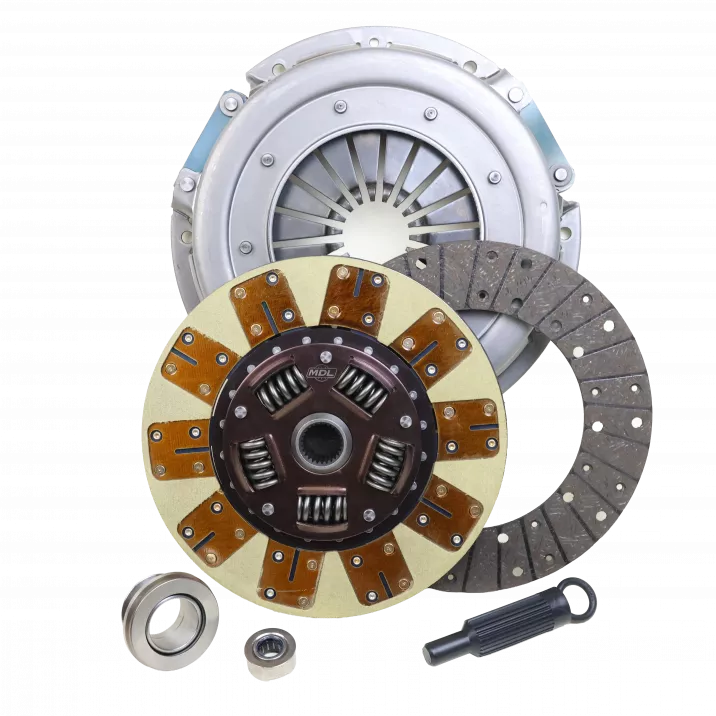

Kit Includes
- Diaphragm pressure plate - 10.4" metric bolt pattern with alignment dowel pins, uses 8mm bolts
- Clutch disc - 26-spline x 1-1/8", sprung hub, Kevlar/steel-backed organic facings
- Cable-actuated throw-out bearing
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
