Key Features
- 10.5" clutch disc with Kevlar/steel-back organic facings for extended service life and smooth engagement
- Ford 10" Long pattern 3-finger pressure plate with 3-1/8" bolt spacing using 5/16" bolts
- 26-spline 1-1/8" sprung hub for TKO and T-56 Magnum conversions
- Fully sprung hub with marcel spring for chatter-free engagement and driveline dampening
- 450 ft-lb torque rating for high-performance street applications
- Hand-built in-house with exacting tolerances and double-checked quality control
- Made in the USA with 1-year free-from-defect warranty
Description
When you're upgrading to a modern overdrive transmission but want to retain your stock Ford 10" Long pattern flywheel, this Superior clutch kit delivers the torque capacity and durability your build demands. The Kevlar/steel-back organic facing combination provides the best of both worlds: Kevlar on the pressure plate side resists heat buildup and increases torque capacity under load, while the organic flywheel-side facing ensures progressive, chatter-free engagement for daily drivability.
The 3-finger pressure plate uses the classic Ford 10" Long bolt pattern with three pairs of bolts spaced 3-1/8" apart, mounting directly to 157-tooth flywheels found on 289, 302, and other small-block Ford applications. The 26-spline 1-1/8" hub interfaces directly with TKO-500, TKO-600, and T-56 Magnum input shafts, making this kit ideal for modern overdrive conversions using mechanical clutch linkage.
All Superior clutch discs are hand-built in-house at MDL, ensuring quality, exacting tolerances, and flawless operation. Every disc is double-checked for accuracy before shipping so you receive a ready-to-install premium component right out of the box. The fully sprung hub absorbs driveline shock during aggressive shifts, while the marcel spring provides progressive pedal feel and full clutch control.
Designed specifically for mechanical release systems including traditional clutch forks and Fox-body style quadrant assemblies. Made in the USA and backed by a 1-year free-from-defect warranty with lifetime technical support from MDL.

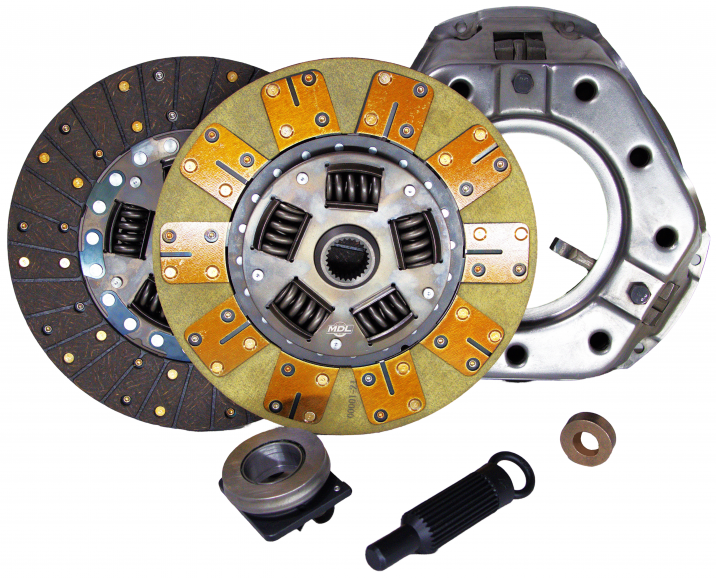

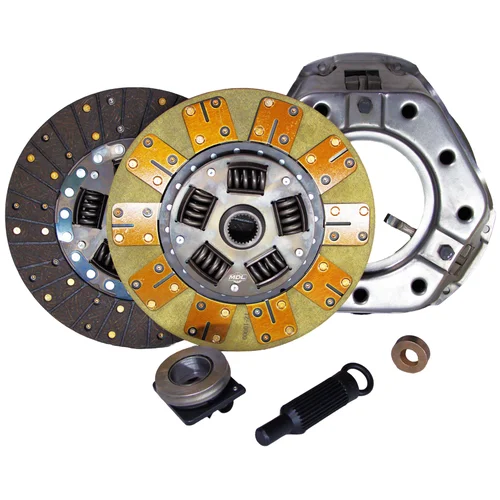

Kit Includes
- Superior 3-finger pressure plate, Ford 10" Long pattern with 3-1/8" bolt spacing
- 10.5" clutch disc with Kevlar/steel-back organic facings, 26-spline 1-1/8" sprung hub
- Mechanical throw-out bearing
- Pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime technical support
