Key Features
- Hand-assembled in-house with exacting tolerances and double-checked accuracy before shipping
- Kevlar facing on pressure plate side, steel-back organic facing on flywheel side for smooth engagement and durability
- 11" clutch disk with 12-3/8" EQ diaphragm pressure plate bolt pattern
- 550 lb-ft torque rating for Performance Street Plus applications
- 10-spline x 1-1/16" sprung hub for drivetrain shock absorption
- Designed for hydraulic release actuation systems
- Made in the USA with 1-year free-from-defect warranty
Description
When your Ford build demands reliable power transfer without sacrificing street manners, the MDL Superior clutch kit delivers the perfect balance. This clutch solves the common problem of choosing between smooth daily driving and holding serious torque. The dual-faced design puts Kevlar on the pressure plate side for maximum grip under load, while the steel-back organic material on the flywheel side ensures smooth engagement and eliminates the harsh grab that makes high-performance clutches miserable in traffic.
The engineering behind this design matters. Every Superior clutch disk is hand-built in-house so MDL can control quality and tolerances -- each one is checked and double-checked for accuracy before it ships. The 12-3/8" equal-spacing bolt pattern diaphragm pressure plate provides consistent clamping force across the entire friction surface, eliminating hot spots and ensuring even wear. The sprung hub dampens drivetrain shock and reduces gear rattle at idle, extending synchronizer and gear life while improving shift feel.
Rated at 550 lb-ft of torque, this clutch kit is built for Performance Street Plus applications -- serious power with everyday drivability. The 10-spline x 1-1/16" input shaft compatibility makes this kit ideal for Ford applications using hydraulic clutch release systems, including TREMEC TKX and T5 swaps with 10-spline inputs. Proudly crafted in the USA and backed by MDL's 1-year free-from-defect warranty.

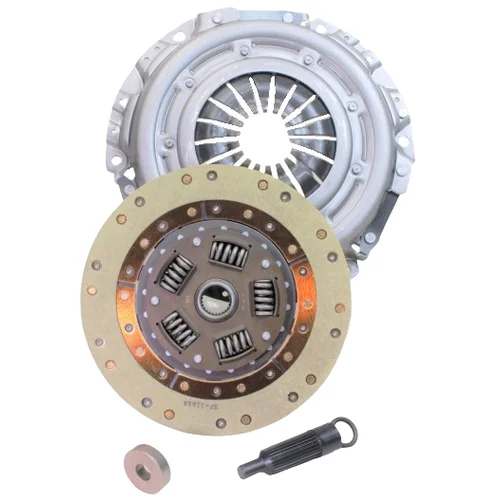

Kit Includes
- Diaphragm pressure plate with 12-3/8" EQ bolt pattern
- 11" clutch disk with Kevlar/steel-back organic facings and sprung hub
- Pilot bushing
- Clutch alignment tool
