Key Features
- Kevlar/steel-back organic dual-surface design delivers 550 lb-ft torque capacity for Performance Street Plus applications
- Kevlar facing on flywheel side for aggressive bite and heat resistance; steel-backed organic on pressure plate side for smooth modulation
- 10 spline x 1-1/8" input shaft configuration for Ford T5, TKO, and TKX transmissions
- 12-3/8" equidistant bolt pattern with 3/8"-16 mounting hardware
- Diaphragm pressure plate with lower lever height optimized for hydraulic release systems
- Sprung hub design dampens drivetrain shock and reduces NVH
- Hand-built in Caldwell, Idaho with double-checked tolerances before shipping
- Made in the USA with 1-year defect-free warranty
Description
When you need serious holding power without sacrificing daily drivability, this dual-surface clutch set delivers the engineering precision Ford performance builds demand. The Kevlar facing on the flywheel side provides aggressive initial bite and exceptional heat resistance, while the steel-backed organic facing on the pressure plate side ensures smooth engagement and extended service life. This combination eliminates the harshness of full-ceramic designs while delivering significantly more torque capacity than traditional organic-only setups.
The diaphragm pressure plate features optimized lever geometry with a lower lever height specifically designed for hydraulic release systems, providing consistent pedal feel and precise engagement characteristics. The 12-3/8" equidistant bolt pattern with six evenly-spaced 3/8"-16 mounting bolts ensures secure installation on Ford flywheels with this pattern. The sprung hub design absorbs drivetrain shock loads that would otherwise stress transmission components, extending the life of your entire driveline.
Every MDL Superior clutch disk undergoes hand assembly at our Caldwell, Idaho facility, where exacting tolerances and quality control processes ensure flawless operation straight from the box. The 10 spline x 1-1/8" configuration matches Ford input shaft specifications found on T5, TKO, and TKX transmissions, while the 550 lb-ft torque rating handles serious street performance and spirited driving.
Compatible with Ford applications requiring 11" clutch diameter and 12-3/8" equidistant bolt pattern specifications. Designed exclusively for hydraulic actuation systems - not compatible with mechanical linkage setups. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

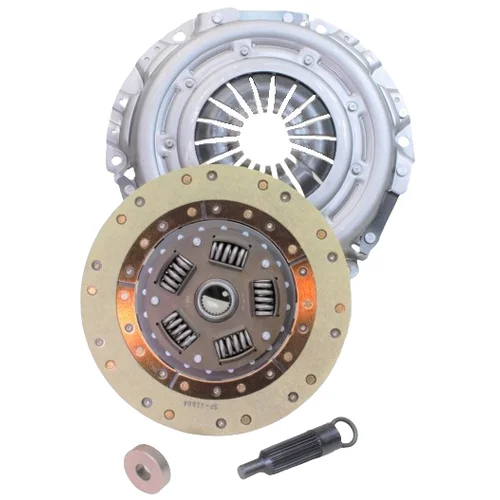

Kit Includes
- Diaphragm pressure plate with 12-3/8" equidistant bolt pattern (hydraulic release optimized)
- 11" Kevlar/steel-back organic clutch disk with sprung hub (10 spline x 1-1/8")
- Pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year defect-free warranty
- Lifetime technical support
