Key Features
- Kevlar/Kevlar friction facings on both sides for aggressive bite and exceptional heat resistance
- 11.5" long pattern diaphragm pressure plate for Big Block Changeover applications
- 10-spline hub with 1-1/16" input shaft compatibility
- 500 ft-lb torque rating for performance street and open track use
- Mechanical throw-out bearing included - works with existing Z-bar or cable linkage
- Sprung hub design for smooth engagement and reduced drivetrain shock
- Hand-built in-house with double-checked tolerances
- Complete kit with FE pilot bushing and clutch alignment tool
- Made in the USA with 1-year free-from-defect warranty
Description
Ford big block swaps into small block chassis create a unique clutch fitment challenge. The Big Block Changeover (BBCO) 11.5" long bolt pattern solves this problem, providing the correct pressure plate mounting dimensions when installing FE, 351M, 400M, or 385-series engines into vehicles originally equipped with smaller powerplants. This MDL Superior clutch kit delivers the holding power those big blocks demand without requiring a hydraulic conversion.
The dual Kevlar friction surfaces provide a higher coefficient of friction than organic materials, delivering more aggressive engagement characteristics suited to performance street driving and open track sessions. Kevlar excels at heat dissipation and resists the glazing that plagues organic facings under hard use. Unlike ceramic facings that can be harsh for street duty, Kevlar maintains manageable pedal modulation while still providing serious holding power - this kit is rated for 500 ft-lb of torque.
The diaphragm-style pressure plate eliminates the adjustment headaches of long-style finger clutches and delivers consistent pedal feel throughout the clutch's service life. The sprung hub dampens engagement shock for smoother takeoffs and reduced drivetrain stress. Mechanical actuation means this kit works directly with your existing Z-bar linkage or cable setup - no hydraulic conversion required.
Every MDL Superior clutch disk is hand-assembled in-house using the finest components available. Each unit is double-checked for accuracy and flawless operation before shipping, ensuring you receive a ready-to-install premium piece right out of the box. This is a Performance Proven product that has survived the rigorous challenges of racing on and off the track. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

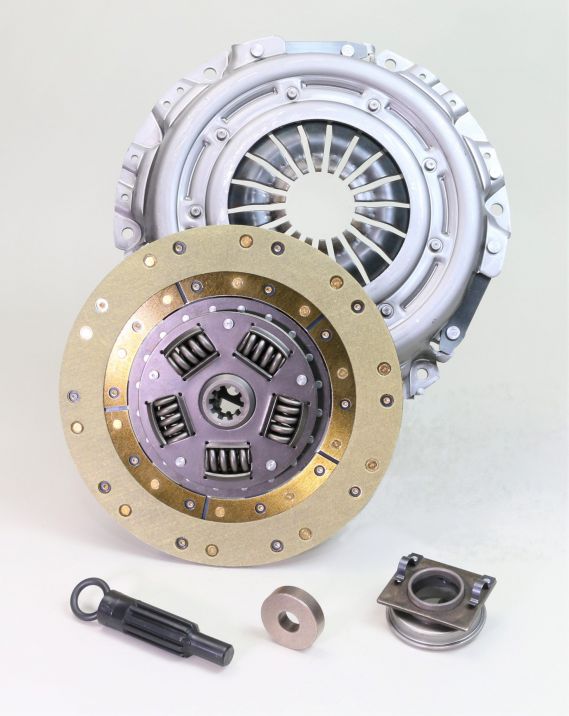

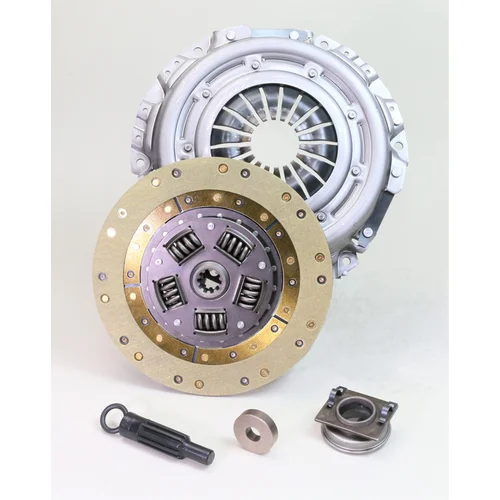

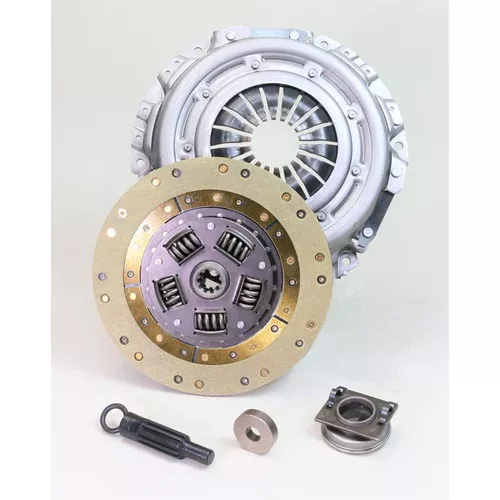

Kit Includes
- 11.5" long pattern diaphragm pressure plate
- 11" clutch disk with Kevlar/Kevlar facings, sprung hub, 10-spline x 1-1/16"
- Mechanical throw-out bearing
- FE pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
