Key Features
- Dual Kevlar/Kevlar friction facings rated for 500 horsepower
- 11" clutch disk with sprung hub for smooth street engagement
- 12-3/8" equidistant bolt pattern with 3/8"-16 pressure plate bolts
- 26-spline x 1-1/8" input shaft compatibility
- Diaphragm pressure plate for reduced pedal effort vs. long-style designs
- Optimized for hydraulic actuation systems
- Hand-built in-house with precision-checked tolerances
- Performance Proven in racing applications on and off track
- Made in the USA with 1-year free-from-defect warranty
Description
When your Ford Big Block build needs serious holding power without the harsh engagement of ceramic pucks, this MDL Superior 11" clutch set delivers the ideal balance. Dual Kevlar/Kevlar friction facings provide exceptional heat resistance and wear characteristics while maintaining the smooth, progressive engagement that makes a performance car livable on the street. Rated at 500 horsepower, this setup handles everything from spirited street driving to open-track days without breaking a sweat.
The 12-3/8" equidistant bolt pattern fits Ford flywheels drilled for diaphragm-style pressure plates using 3/8"-16 fasteners. Unlike the older long-style pressure plates with their paired bolt arrangement, the equidistant pattern spaces all six bolts evenly around the 12-3/8" diameter circle. The diaphragm design delivers consistent clamping force throughout the friction material's life while requiring less pedal effort than comparable long-style units.
Every Superior clutch disk is hand-built in-house at MDL, giving complete control over quality and tolerances. Each assembly is checked and double-checked for accuracy before it ships, so you receive a ready-to-install component right out of the box. The sprung hub design dampens driveline shock for improved drivability, while the Kevlar facings offer 2-3 times the service life of organic materials when properly broken in.
Designed for hydraulic actuation systems on 26-spline transmissions including the TREMEC TKO, TKX, T5, and other popular swaps. Pressure plate bolts not included. Made in the USA and backed by MDL's 1-year free-from-defect warranty and lifetime technical support.

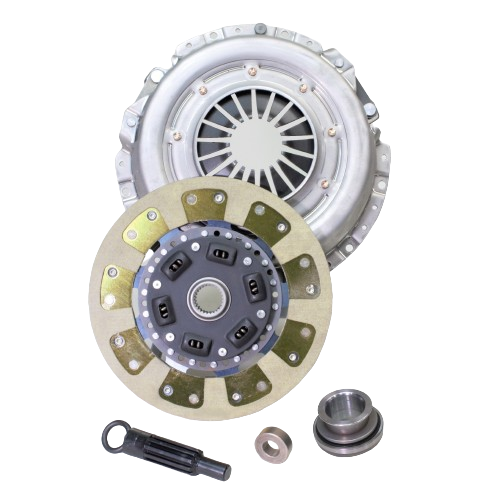

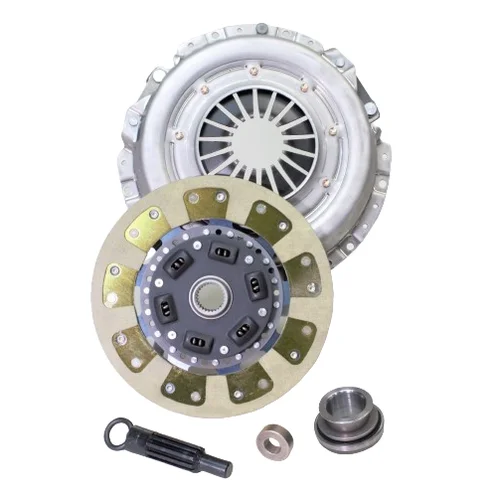

Kit Includes
- Diaphragm pressure plate with 12-3/8" equidistant bolt pattern
- 11" clutch disk with Kevlar/Kevlar friction facings and sprung hub (26-spline x 1-1/8")
- Big Block Ford pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
