Key Features
- Dual Kevlar friction surfaces on both sides for maximum heat resistance and extended service life
- 600 lb-ft torque capacity for high-performance street and open track applications
- 11" disc with 1-1/8" x 26-spline hub fits transmissions with 26-spline input shafts
- 12-5/8" equidistant bolt pattern diaphragm pressure plate for reduced pedal effort
- Sprung hub design absorbs drivetrain shock and smooths engagement
- Mechanical release throw-out bearing included for direct fitment
- Hand-assembled in-house with double-checked quality control
- Made in the USA with 1-year free-from-defect warranty
Description
When your Ford build demands serious torque capacity and track-day durability, organic clutch discs fall short. The Superior Kevlar/Kevlar clutch kit solves the heat and wear problems that plague high-performance applications. With dual Kevlar friction surfaces rated at 600 lb-ft, this clutch is purpose-built for extreme duty conditions where organic compounds would fade or burn. Kevlar facings last 2-3 times longer than organic material and deliver smooth, progressive engagement that works equally well in stop-and-go traffic or during aggressive track sessions.
The engineering centers on Kevlar's exceptional thermal properties and wear characteristics. Unlike organic compounds that lose holding power as temperatures climb, Kevlar maintains its grip under repeated high-heat cycles. The para-aramid fiber construction provides excellent strength-to-weight ratio, keeping rotational mass low while delivering reliable torque transfer. The sprung hub design absorbs drivetrain shock loads and smooths engagement for improved drivability on the street.
The diaphragm pressure plate delivers a significant advantage over Long-style three-finger designs. The Belleville spring provides lighter pedal effort and smoother engagement while actually increasing clamping force as the disc wears over its service life. This means consistent performance from installation through the clutch's final miles, without the punishing pedal effort that Long-style clutches demand.
Compatible with Ford applications requiring 1-1/8" x 26-spline input shafts and 12-5/8" equidistant bolt pattern flywheels. Designed for mechanical release systems. Every Superior clutch disc is hand-built in-house at MDL, with exacting tolerances double-checked before shipping. Made in the USA and backed by a 1-year free-from-defect warranty.

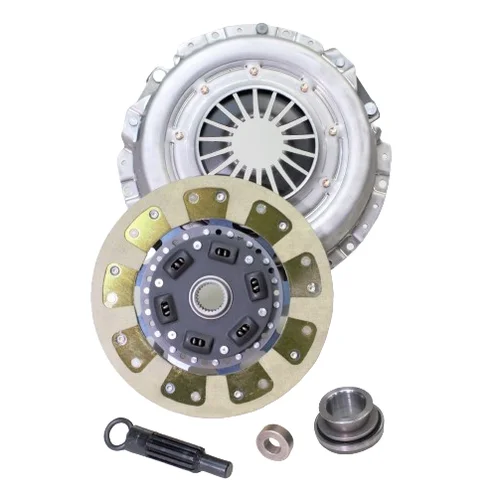

Kit Includes
- 11" Kevlar/Kevlar clutch disc - 1-1/8" x 26-spline, sprung hub
- Diaphragm pressure plate - 12-5/8" equidistant bolt pattern
- Mechanical release throw-out bearing
- 3/8" pressure plate bolts
- .670" pilot bushing
- Clutch alignment tool
