Key Features
- Ford 11" Long pattern (3-3/8" bolt spacing) with diaphragm pressure plate
- Low lever height design optimized for hydraulic release systems
- 10-spline x 1-1/16" clutch disc with organic/organic facings for smooth engagement
- 300 ft-lb torque capacity for street performance builds
- Hand-assembled in Caldwell, Idaho with double-checked quality verification
- Performance Proven—track-tested durability you can trust
- Uses 5/16"-18 pressure plate bolts
Description
When you're running a hydraulic clutch release system on your Ford small block or 400M and need a clutch that delivers smooth, predictable engagement without fighting the pedal, the MDL Superior 11" Long Pattern Clutch Set is engineered for the job. The low lever height diaphragm pressure plate reduces the force required at the slave cylinder, giving you a lighter pedal feel while maintaining full clamp load—critical for hydraulic systems where release travel and pressure are precisely calibrated.
The Ford 11" Long pattern uses the classic 3-3/8" bolt spacing found on 302, 351, and 400M engines. Our organic/organic disc facings provide progressive, chatter-free engagement ideal for street driving and mild performance use, while the 10-spline x 1-1/16" hub matches transmissions like the T5, TKO, and TKX with the correct input shaft. This kit handles up to 300 ft-lbs of torque—plenty of capacity for a healthy small block street build.
Every MDL Superior clutch disc is hand-built in-house at our Caldwell, Idaho facility. We control quality and tolerances from start to finish, with each assembly checked and double-checked before it ships. You receive a ready-to-install premium clutch—not a box of parts that might work. Backed by a 1-year free-from-defect warranty and our Performance Proven track record.
Note: This kit does not include a throwout bearing or pilot bearing. Throwout bearing must be selected based on your bellhousing and release system configuration.

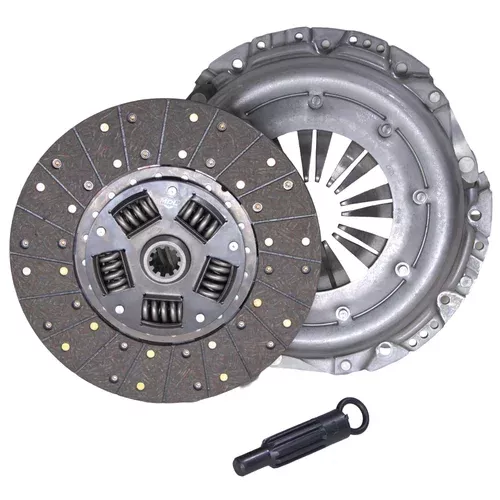

Kit Includes
- Diaphragm pressure plate, low lever height design
- Organic/organic faced clutch disc, 10-spline x 1-1/16"
- Ford pilot bushing
- 10-spline clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
