Key Features
- Hand-built in-house with double-riveted construction for precision quality control
- Kevlar/Kevlar full-face friction facings rated for 600 ft-lbs torque capacity
- 12-3/8" equidistant bolt pattern fits Ford 164-tooth flywheels with 3/8"-16 pressure plate bolt holes
- 26-spline x 1-1/8" clutch disk hub for high-strength drivetrain connections
- Diaphragm pressure plate delivers consistent clamping force with lighter pedal effort than long-style designs
- Sprung hub assembly absorbs driveline shock and reduces gear chatter
- Mechanical throw-out bearing works with factory linkage or cable actuation
- 1-year free-from-defect warranty
- Made in the USA
Description
Upgrading from a worn clutch or stepping up for more torque capacity? The Superior Series clutch kit delivers race-proven holding power in a streetable package. Kevlar friction material outperforms organic compounds under heat—where organic facings lose grip as temperature climbs, Kevlar actually increases its coefficient of friction, making it ideal for aggressive launches and sustained high-RPM driving.
MDL hand-builds every clutch disk in-house, double-riveting the facings and checking each assembly for proper marcel spring tension, correct facing thickness, and precise balance before it ships. This isn't mass-produced overseas assembly—it's precision work by drivetrain specialists who understand that a clutch is only as good as its weakest rivet. The 26-spline hub spreads torque load across more contact area than 10-spline designs, reducing stress on individual splines during hard launches.
The 12-3/8" equidistant bolt pattern fits Ford flywheels with six evenly-spaced 3/8"-16 threaded holes—commonly found on 164-tooth flywheels used with 11" diaphragm clutches. The diaphragm pressure plate design provides linear pedal feel and consistent clamping force throughout the clutch's service life, with noticeably lighter pedal effort than traditional long-style pressure plates. Sprung hub construction isolates transmission input gears from engine firing pulses during engagement, reducing chatter and extending synchro life.
Rated at 600 ft-lbs, this clutch set handles performance street driving and open track applications. The mechanical release bearing system works with factory linkage or cable actuation—no hydraulic conversion required. Pressure plate bolts are not included; use 3/8"-16 fasteners torqued to specification.

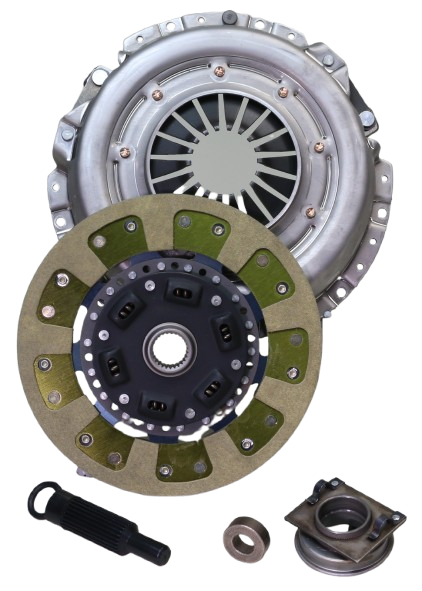

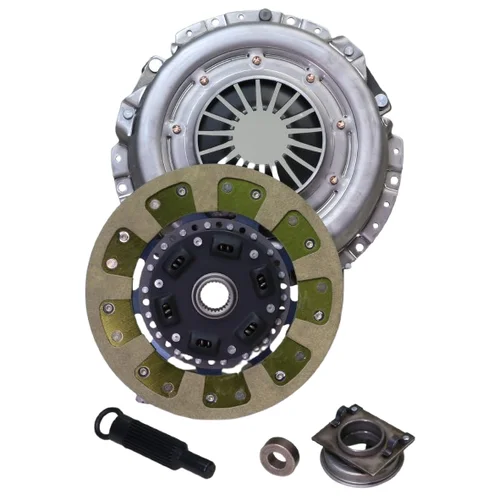

Kit Includes
- Diaphragm pressure plate with 12-3/8" equidistant bolt pattern
- 11" clutch disk with Kevlar/Kevlar facings, 26-spline x 1-1/8" sprung hub
- Mechanical throw-out bearing
- Bronze pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
