Key Features
- Kevlar/Kevlar dual-friction facings - high-Kevlar-content disc for extreme heat tolerance and long service life
- 11" diaphragm pressure plate with 12-3/8" EQ (equidistant) bolt pattern.
- 10-spline clutch disc with 1-1/16" input shaft bore
- 600 lb-ft torque capacity for serious street and track builds
- Sprung hub design absorbs drivetrain shock and reduces chatter
- Optimized for hydraulic release systems - designed for proper clearance with concentric slave cylinders
- Hand-assembled with double-riveted construction for durability and precision
- Made in the USA with 1-year free-from-defect warranty
Description
When you're pushing serious power through a Ford drivetrain, you need a clutch that won't fade under heat and abuse. The Superior Kevlar/Kevlar clutch assembly delivers exactly that - dual-sided Kevlar friction material that stands up to extreme punishment and comes back for more, mile after mile. Unlike competitors who use only 10-20% Kevlar content, Superior clutch discs are nearly 100-percent Kevlar for maximum heat resistance and extended service life.
This 11" diaphragm clutch is engineered for high-performance Ford applications using the 12-3/8" equidistant bolt pattern. The 10-spline disc with 1-1/16" input shaft bore is specifically configured for hydraulic release systems, providing the proper geometry for trouble-free operation with internal or external slave cylinders. The sprung hub design dampens drivetrain vibration and absorbs shock loads during aggressive launches, protecting your transmission while delivering smooth engagement on the street.
Rated at 600 lb-ft of torque capacity, this clutch handles the demands of performance street driving and open track days without breaking a sweat. The Kevlar/Kevlar configuration is ideal for high-torque applications and lightweight vehicles where clutch chatter can be a concern - the Kevlar facings engage progressively while still delivering the grip you need when you mat the throttle.
Every Superior clutch disc is hand-assembled in-house with double-riveted construction, then inspected for quality before shipping. This is a Performance Proven product - it has survived the rigorous challenges of racing on and off track. Proudly made in the USA and backed by a 1-year free-from-defect warranty. Note: This kit requires 3/8" pressure plate bolts, which are not included.

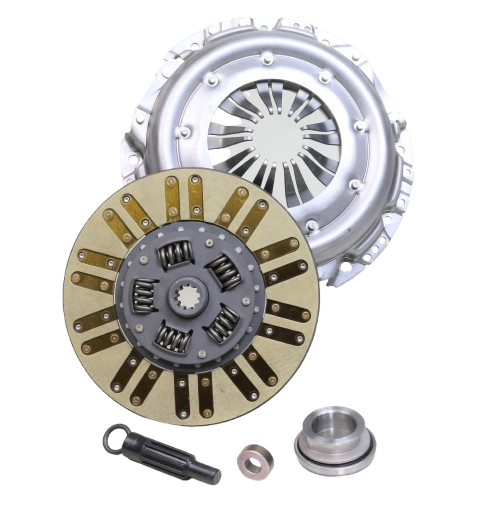

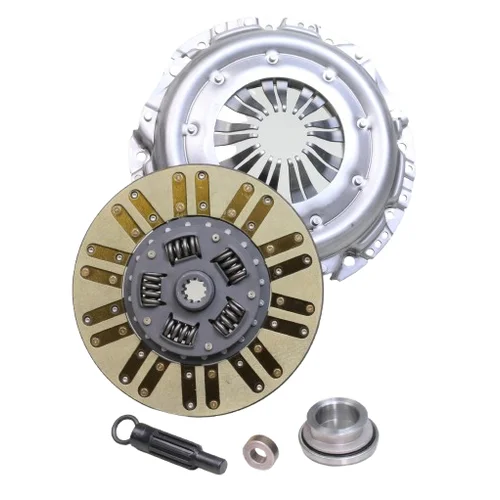

Kit Includes
- 11" diaphragm pressure plate with 12-3/8" EQ bolt pattern
- Kevlar/Kevlar clutch disc - 10-spline x 1-1/16" with sprung hub
- Pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
- Lifetime tech support from MDL
