Key Features
- 8.5" clutch diameter specifically engineered for 1960-1966 Ford 170-200ci inline-6 engines with 3-speed transmissions
- 10-spline x 15/16" hub matches original Ford 3-speed transmission input shaft specifications
- Hand-assembled organic/organic disk with double-riveted facings for reliable street performance
- 3-finger pressure plate design delivers consistent clamping force and smooth pedal engagement
- Sprung hub dampens drivetrain vibration for improved drivability
- 125 ft-lbs torque capacity handles stock and mildly modified inline-6 applications
- Complete kit includes pilot bushing, throwout bearing, and alignment tool
- Made in the USA with 1-year defect warranty
Description
Ford's early 170-200ci inline-6 engines used an 8.5" clutch pattern that's become nearly impossible to source through conventional channels. If your starter attaches to the bellhousing with three bolts, you have this early pattern -- and this clutch kit is exactly what you need. MDL's Superior brand clutch set delivers a factory-quality replacement for 1960-1966 Ford vehicles equipped with the original 3-speed manual transmission.
Every Superior clutch disk is hand-assembled in-house and double-riveted to ensure precise tolerances and flawless operation before it ships. The organic/organic facing material provides excellent street manners with progressive engagement -- ideal for daily drivers and weekend cruisers who want smooth, predictable clutch feel. The 3-finger pressure plate eliminates the hot spots and inconsistent clamping force issues common with rebuilt units from lesser sources.
With 125 ft-lbs of torque capacity, this kit handles stock Ford inline-6 engines plus mild performance modifications without issue. The sprung hub design dampens drivetrain vibration for improved NVH characteristics. The 10-spline hub with 15/16" diameter matches Ford's original 3-speed transmission input shaft exactly -- no guessing about fitment.
Compatible with 1960-1966 Ford Falcon, Mustang (1964.5-1966), Comet, Ranchero, and Econoline models equipped with 170-200ci engines and 3-speed manual transmissions using the 8.5" stepped "dog dish" flywheel. Made in the USA and backed by MDL's 1-year defect warranty.

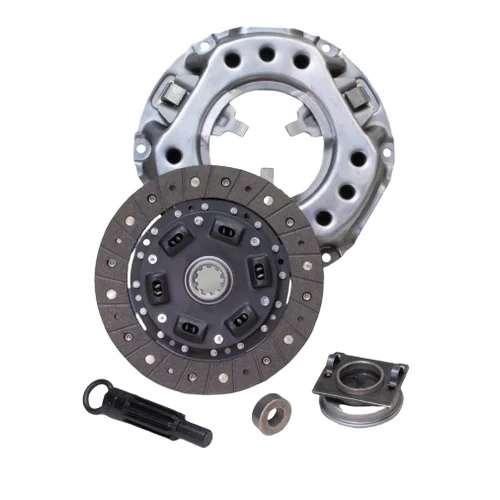

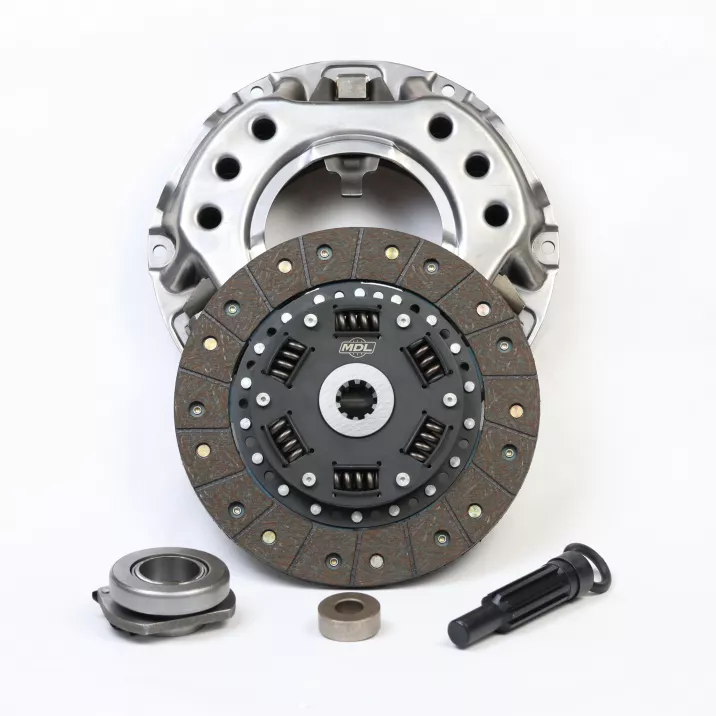

Kit Includes
- Organic/organic clutch disk -- 8.5" diameter, 10-spline x 15/16" hub, sprung center
- 3-finger pressure plate
- Bronze pilot bushing
- Throwout bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year defect warranty
