Key Features
- 10.4" metric bolt pattern with integral dowel pins for precise flywheel alignment
- Diaphragm pressure plate delivers consistent clamping force with smooth pedal feel
- Organic/organic disc facings for progressive engagement and long service life
- 10 x 1-1/16" splined hub fits stock 10-spline input shafts
- Sprung hub design dampens driveline vibration and protects synchronizers
- 225 lb-ft torque rating handles stock 5.0L output plus moderate bolt-ons
- Hand-assembled in-house with double-checked tolerances before shipping
- 1-year free-from-defect warranty with lifetime tech support
Description
Ford's '86-'95 Mustang 5.0L introduced the metric clutch system, and that unique bolt pattern stops plenty of builders in their tracks. This MDL Superior clutch set solves the fitment puzzle with a complete kit engineered specifically for the 10.4" metric bolt pattern with integral dowel pins found on these applications.
The diaphragm-style pressure plate sits at the heart of this kit, providing even clamping pressure across the entire friction surface. Unlike long-style clutches that rely on coil springs, the diaphragm design eliminates hot spots and maintains consistent pedal feel throughout the disc's service life. The organic/organic friction material delivers the smooth, progressive engagement that daily drivers and weekend cruisers demand--no grabby on-off engagement that makes stop-and-go traffic miserable.
The sprung hub construction dampens torsional vibration between the engine and transmission, protecting synchronizers and reducing gear rattle at idle. With a 225 lb-ft torque rating, there's headroom for bolt-on modifications while maintaining streetable manners. The 10 x 1-1/16" splined hub fits stock 10-spline input shafts found in factory T-5 transmissions.
Compatible with 1986-1995 5.0L applications using cable-actuated throwout bearings. Every Superior clutch kit is hand-assembled at MDL's Caldwell, Idaho facility and inspected before shipping. Made in the USA.

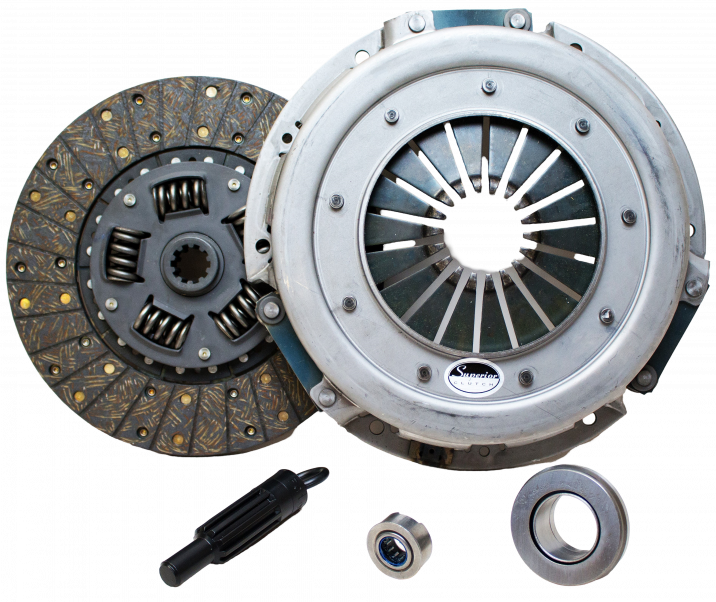

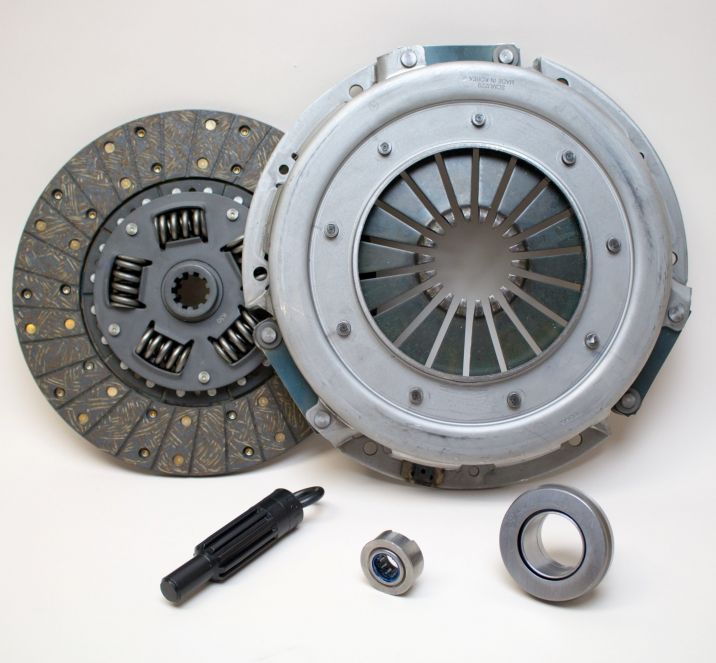

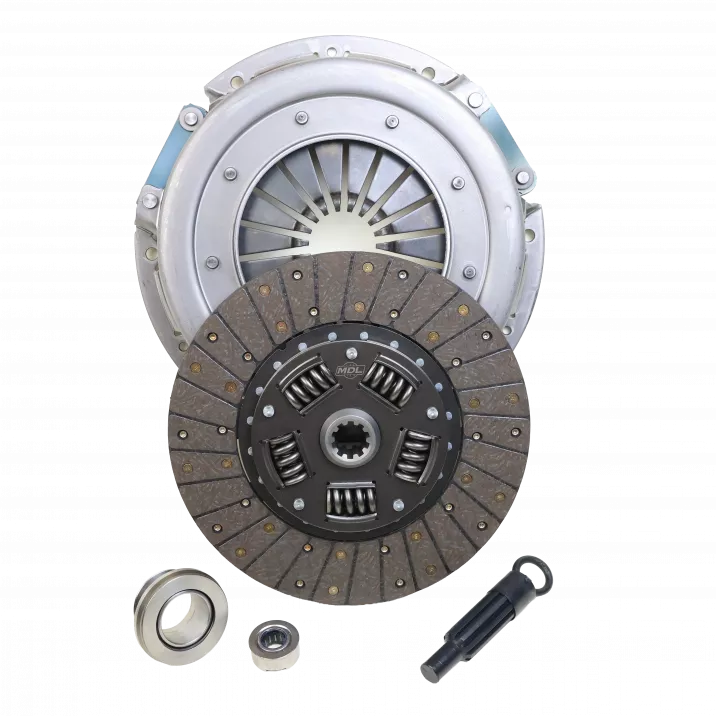

Kit Includes
- Diaphragm pressure plate with 10.4" metric bolt pattern
- 10.4" clutch disc with organic/organic facings and sprung hub
- Cable-actuated throwout bearing
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- Lifetime technical support
