Key Features
- Hand-built in-house with double-checked quality and tolerances for ready-to-install precision
- 11.5" long pattern diaphragm pressure plate for Ford big block change over applications
- Organic/organic facings deliver smooth, progressive engagement for street driving
- 10-spline x 1-1/16" hub with sprung center for drivetrain protection
- 350 lb-ft torque capacity suits most street big block combinations
- Hydraulic release design eliminates mechanical linkage adjustment and wear
- Big block Ford pilot bushing and clutch alignment tool included
- Performance Proven designation validated through on- and off-track racing
- Made in the USA with 1-year free-from-defect warranty
Description
Converting a Ford big block to a modern TREMEC transmission demands a clutch that bridges old-school bolt patterns with new-school actuation. This MDL Superior clutch kit solves that problem with an 11.5" long pattern pressure plate specifically designed for big block change over (BBCO) applications, paired with a hydraulic release for seamless integration with modern hydraulic throwout systems. Ford's FE series (390, 427, 428) and 385 series (429, 460) big blocks share similar flywheel bolt patterns but differ in bellhousing configurations--this BBCO pattern accommodates those conversions while keeping engagement smooth and predictable.
Every Superior brand clutch disk is hand-assembled at MDL's Caldwell, Idaho facility. Each disk is double-checked for accuracy before shipping, ensuring consistent pedal feel and engagement characteristics right out of the box. The organic/organic facings provide progressive engagement without the grabby, on-off behavior of aggressive friction materials--ideal for street-driven builds where driveability matters as much as holding power. At 350 lb-ft torque capacity, this clutch handles most naturally aspirated big block combinations without drama.
The 10-spline x 1-1/16" hub with sprung dampening absorbs shock loads during engagement, protecting your transmission input shaft and reducing drivetrain harshness. The hydraulic release design works with internal and external slave cylinder setups, eliminating the adjustment hassles and pivot wear inherent in mechanical linkages. Note that no throwout bearing is included--select the bearing that matches your specific hydraulic release system.
This kit fits Ford FE and 385-series big block engines when used with appropriate BBCO flywheels and bellhousings. Performance Proven products have survived rigorous racing challenges both on track and off, giving you confidence in demanding applications. Made in the USA and backed by MDL's 1-year free-from-defect warranty.

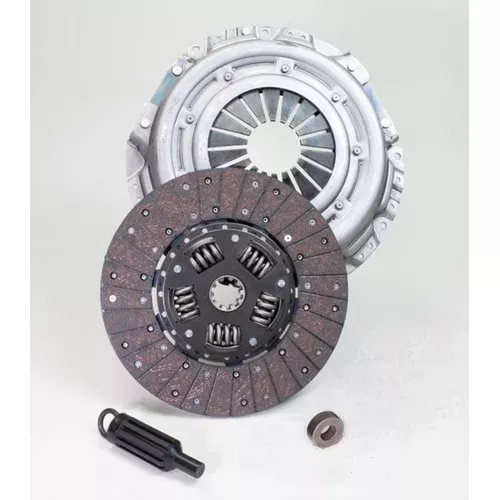

Kit Includes
- 11.5" long pattern diaphragm pressure plate (hydraulic release)
- Organic faced clutch disk with 10-spline x 1-1/16" sprung hub
- Big block Ford pilot bushing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime tech support from MDL
