Key Features
- Hand-built in-house for precision tolerances and quality control
- 10.5" diameter clutch disk with 11-5/8" equidistant (EQ) pattern pressure plate
- 26-spline x 1-1/8" input shaft compatibility
- Organic/organic facings for smooth engagement and street durability
- Diaphragm-style pressure plate (requires 3/8" PP bolts)
- 300 lb-ft torque capacity
- Sprung hub design for vibration dampening
- Designed for mechanical clutch release systems
- 1-year defect-free warranty
- Made in the USA
Description
Finding reliable, precision-built clutch components for Ford Flathead V8 engines gets harder every year. This Superior Series clutch kit solves that problem with a complete pressure plate and disk assembly purpose-built for flathead applications requiring a 26-spline x 1-1/8" input shaft -- the spline count commonly found in GM T-5 conversions using Camaro-style transmissions.
Every Superior clutch disk is hand-built at MDL's facility to ensure exacting tolerances that mass-produced disks simply cannot match. The organic/organic facing material delivers excellent heat dissipation and smooth, progressive engagement -- ideal characteristics for flathead torque delivery on the street or at the track. The sprung hub design absorbs drivetrain shock and vibration, protecting your transmission input shaft while providing a more refined driving experience.
The 10.5" diaphragm pressure plate uses an 11-5/8" equidistant bolt pattern and requires 3/8" pressure plate bolts for proper mounting. This kit is rated at 300 lb-ft of holding capacity -- well-suited for street driving and moderate racing applications. The included Ford Flathead pilot bearing and .670" tip alignment tool ensure correct installation from the start. Designed specifically for mechanical clutch release setups; no throwout bearing is included with this kit. [VERIFY: "comes_with" field lists throwout bearing but description states it is NOT included -- confirm kit contents]
Performance Proven components have survived rigorous racing conditions on and off the track. All Superior Series clutch assemblies are manufactured in the United States and backed by MDL's 1-year defect-free warranty and lifetime technical support.

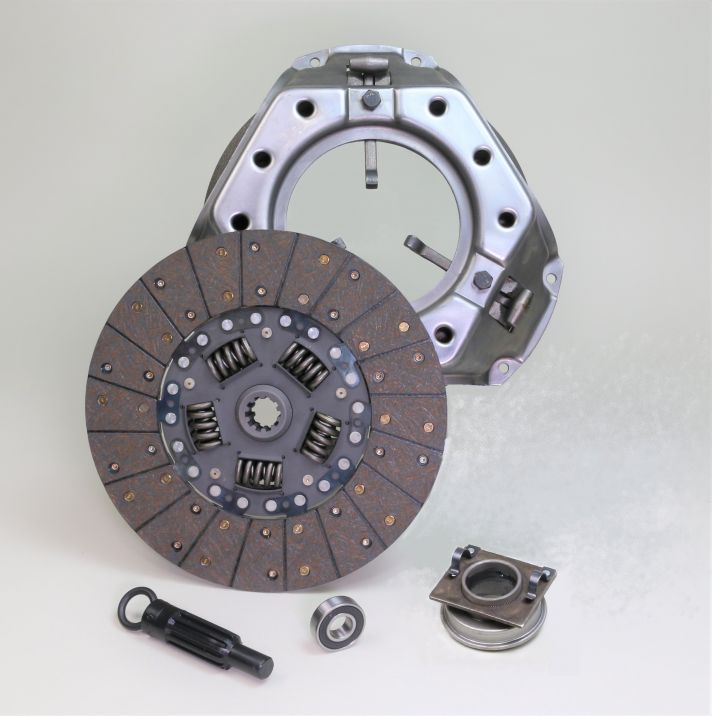

Kit Includes
- 10.5" diaphragm pressure plate with 11-5/8" EQ bolt pattern
- Organic/organic faced clutch disk -- 26-spline x 1-1/8"
- Ford Flathead pilot bearing
- .670" tip clutch alignment tool
- Installation and break-in instructions
- 1-year warranty coverage
- Lifetime technical support
