Key Features
- Kevlar/Kevlar dual-faced friction disc -- aggressive grip with superior heat dissipation for performance applications
- 10" long pattern diaphragm pressure plate -- 6-bolt pattern in 3 groups of 2 with 3.125" center-to-center spacing
- 26-spline x 1-1/8" hub -- direct fit for TREMEC TKO and TKX transmission conversions
- Sprung hub design -- dampens driveline shock for smooth street and track engagement
- Hand-built disc construction in MDL's Caldwell, Idaho facility -- individually inspected for exact tolerances
- 400 lb-ft torque rating -- proven for performance street and open track use
- Made in the USA with 1-year warranty
Description
Classic Ford flathead clutch components are increasingly hard to source, and even harder to find when you're converting to a modern TREMEC transmission. MDL's Superior clutch kit bridges the gap between vintage flathead engineering and contemporary 26-spline input shafts found on TKO and TKX transmissions -- eliminating the need for adapters or compromise.
The Kevlar/Kevlar friction disc delivers the heat resistance and holding power that organic facings simply can't match under repeated hard use. The 10" long pattern pressure plate uses a diaphragm spring design with a 6-bolt pattern divided into 3 groups of 2 with 3.125" center-to-center bolt spacing, ensuring proper compatibility with Ford flathead flywheels drilled for the long pattern. The diaphragm design provides consistent clamping force and a more linear pedal feel compared to vintage three-finger setups.
What sets this kit apart is MDL's in-house disc manufacturing. Every Superior clutch disc is hand-built and quality-checked for exact tolerances before it ships -- no mass-produced inconsistencies. The sprung hub design absorbs driveline shock for smooth engagement whether you're cruising or hammering through the gears at the track. Rated at 400 lb-ft, this kit handles serious flathead builds with confidence.
Compatible with 59A and 8BA flathead engines using 10" long pattern flywheels. Includes pilot bearing and alignment tool for straightforward installation. Note: Throwout bearing sold separately. Made in the USA and backed by a 1-year warranty.

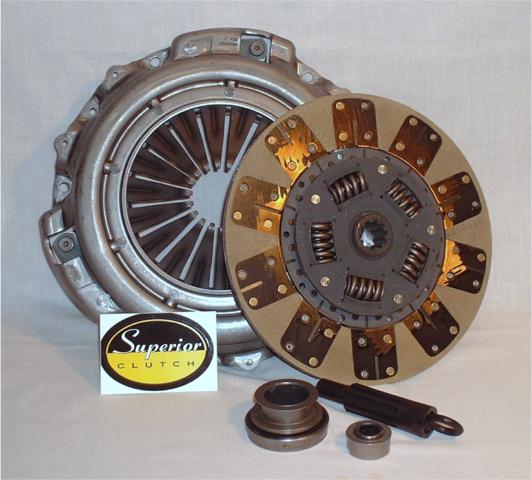

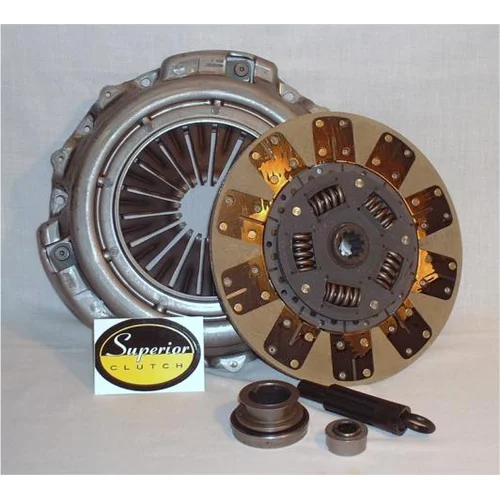

Kit Includes
- 10" long pattern diaphragm pressure plate
- 10" clutch disc with Kevlar/Kevlar facings, sprung hub, 26-spline x 1-1/8" center
- Ford flathead pilot bearing
- 0.590" clutch alignment tool
- Clutch installation and break-in instructions
- 1-year warranty and lifetime technical support
Note: Throwout bearing is NOT included with this kit.
