Key Features
- Dual-sided friction disc: Kevlar facing on pressure plate side for heat resistance, organic facing on flywheel side for smooth engagement
- 11-inch long pattern with 3-3/8-inch diaphragm pressure plate delivers consistent clamping force
- 10-spline x 1-1/16-inch disc fits Ford 4-speed, T-5, 3550, TKO, and TKX transmissions
- Sprung hub design absorbs drivetrain shock and reduces gear rattle
- Rated for 350 lb-ft torque capacity -- ideal for street performance, autocross, and road racing
- Mechanical throwout bearing and .670-inch ID pilot bearing included for complete installation
- Hand-built in-house clutch discs with double-checked tolerances before shipping
- 1-year free-from-defect warranty and Made in the USA
Description
Ford Y-block owners upgrading to a modern transmission need a clutch that matches the original Ford 11-inch long pattern while delivering modern friction materials and clamping force. This Superior clutch set is engineered specifically for Y-block applications, providing the engagement characteristics and durability these classic engines demand for spirited street driving, autocross competition, and road racing.
The dual-sided friction disc combines Kevlar material on the pressure plate side with organic facing on the flywheel side. This pairing delivers progressive engagement with excellent pedal feel while the Kevlar's heat resistance extends clutch life under demanding conditions. The organic flywheel-side facing protects your flywheel surface and provides the smooth, chatter-free engagement Y-block enthusiasts expect. The sprung hub design isolates drivetrain vibration and reduces gear rattle at idle.
Every Superior clutch disc is hand-built in-house at MDL, ensuring precise balance, proper marcel spring tension, and accurate spline machining. Each disc undergoes thorough inspection for runout, concentricity, and facing adhesion before packaging. The 10-spline configuration with 1-1/16-inch input shaft diameter is correct for the original Ford 4-speed as well as modern T-5, 3550, TKO, and TKX transmission swaps commonly installed in Y-block-powered vehicles.
The 3-3/8-inch diaphragm pressure plate provides consistent clamping force throughout its operating range and eliminates the adjustment requirements of period three-finger designs. This kit includes a Ford mechanical-style throwout bearing for standard bellhousing setups. Note: trucks require a different throwout bearing (MD-406-16515, sold separately). Made in the USA with a 1-year free-from-defect warranty.

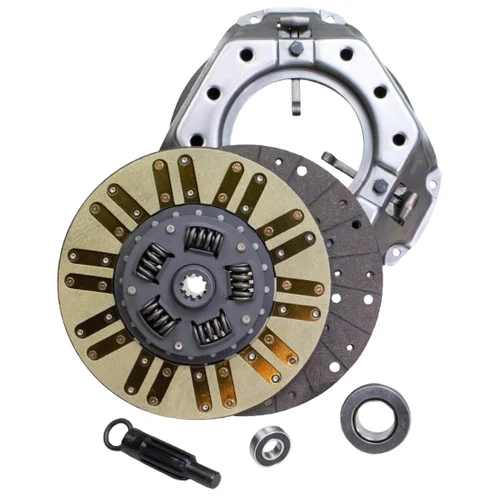

Kit Includes
- Heavy-duty diaphragm pressure plate -- 11-inch long pattern, 3-3/8-inch bolt circle
- Hand-built clutch disc -- Kevlar/organic dual-sided friction material, 10-spline x 1-1/16-inch hub, sprung center
- Ford mechanical-style throwout bearing (trucks require MD-406-16515)
- .670-inch ID pilot bearing
- Clutch alignment tool
- 1-year free-from-defect warranty
