Key Features
- Dual Kevlar/Kevlar friction facings - coefficient of friction increases with heat for consistent holding power under hard use
- 11" Long pattern 3-3/8" diaphragm pressure plate - matches Ford Y-Block flywheel bolt pattern
- 26-spline 1-1/8" hub - compatible with modern transmission input shafts including TREMEC
- 450 lb-ft torque rating - handles modified Y-Block power levels
- Full-face disc design - smooth engagement for street driving with performance durability
- Hand-built in Caldwell, Idaho - every disc inspected for tolerances before shipping
- Performance Proven design - validated through on-track racing use
Description
Stock-style organic clutches fall apart under the torque demands of a modified Ford Y-Block. The Superior Kevlar/Kevlar clutch kit solves that durability problem with dual Kevlar friction surfaces engineered for the unique characteristics of these classic V8s. Ford introduced the Y-Block in 1954 as a replacement for the flathead V8, with displacements ranging from 239 to 312 cubic inches through 1964. Whether you're running a warmed-over 292 in a Thunderbird or a built 312 in a period Ford pickup, this clutch delivers the holding power and longevity these engines deserve.
The engineering advantage of Kevlar facing material is its thermal behavior: unlike organic compounds that lose grip as they heat up, Kevlar's coefficient of friction actually increases with elevated temperature. This means torque capacity improves during hard use rather than fading - critical for performance street driving, open track events, and repeated launches. The material also resists burning when slipped excessively, so an aggressive start won't cause permanent damage the way it would with organic facings.
The 3-3/8" diaphragm pressure plate provides consistent clamping force across the full 11" friction surface. Diaphragm-style plates deliver more linear pedal feel than Long-style plates and maintain clamping pressure better as the disc wears. The 26-spline 1-1/8" hub mates with modern transmission input shafts, making this kit ideal for TREMEC swaps into vintage Y-Block-powered vehicles.
Every Superior clutch disc is hand-built at MDL's facility in Caldwell, Idaho. Each unit is inspected for proper tolerances and balance before shipping, so you receive a ready-to-install component right out of the box. Rated for 450 lb-ft of torque, this kit handles the output of most modified Y-Block combinations while maintaining street-friendly engagement. Made in the USA and backed by a 1-year free-from-defect warranty.

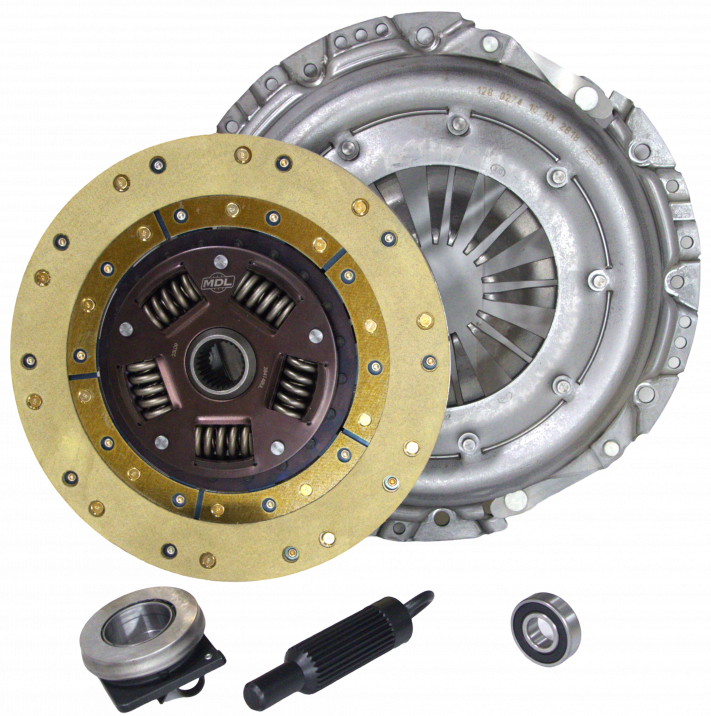

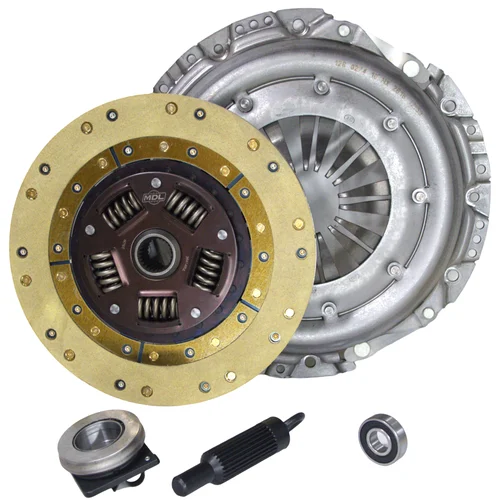

Kit Includes
- 11" Long pattern 3-3/8" diaphragm pressure plate
- Kevlar/Kevlar friction disc with 26-spline 1-1/8" hub
- Mechanical throwout bearing (Note: trucks require part MD-406-16515)
- Pilot bearing
- Clutch alignment tool
- Installation and break-in instructions
- 1-year free-from-defect warranty
- Lifetime tech support
