Key Features
- 10.5" diaphragm pressure plate with 11-5/8" bolt pattern for GM applications
- Full organic facings on both sides for smooth, progressive engagement
- 10-spline 1-1/8" sprung-hub disc for early GM transmission compatibility
- Mechanical throw-out bearing - works with Z-bar or cable linkage, no hydraulics required
- Includes both Chevy and BOP pilot bushings for multi-application flexibility
- Rated for 250 lb-ft torque capacity - ideal for street-driven classics
- Clutch alignment tool included for precise installation
- Hand-assembled in-house with double-checked tolerances before shipping
- 1-year free-from-defect warranty
- Made in the USA
Description
When your classic GM muscle car or street rod needs a reliable clutch replacement that delivers smooth operation without sacrifice, the Superior 10.5" Clutch Kit provides proven performance for daily drivers and weekend cruisers alike. Built around a diaphragm pressure plate design, this kit delivers the increased clamp pressure necessary for high-torque muscle car applications operating in the RPM range where street cars actually live - without the harsh engagement characteristics of racing clutches.
The organic friction material on both sides of the disc ensures civilized street manners with smooth, progressive engagement that won't chatter or grab in stop-and-go traffic. Unlike aggressive sintered or ceramic facings designed for the strip, this organic compound provides forgiving operation while still handling the torque demands of mild to moderate performance builds. The sprung-hub disc design further dampens drivetrain shock for quiet, refined operation.
The mechanical throw-out bearing eliminates hydraulic system complexity - just connect to your existing Z-bar or cable linkage and drive. Both Chevy and BOP (Buick-Olds-Pontiac) pilot bushings are included, giving you the flexibility to swap between different GM engine platforms without chasing down additional parts.
Every MDL Superior clutch kit is hand-assembled in our Caldwell, Idaho facility. Each kit is checked and double-checked for accuracy and flawless operation before it goes in the box, so you receive a ready-to-install premium piece backed by our 1-year warranty. Compatible with 11-5/8" bolt pattern GM flywheels and transmissions requiring a 10-spline 1-1/8" input shaft. Made in the USA.

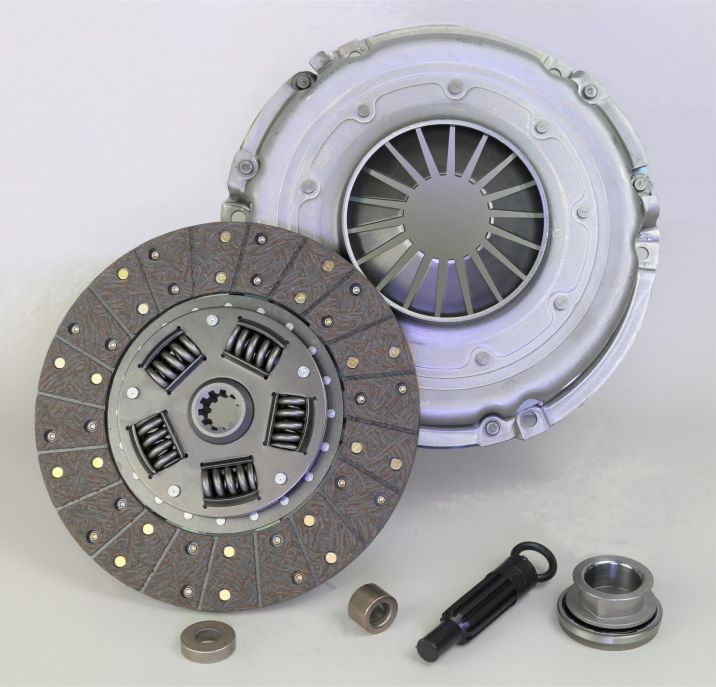

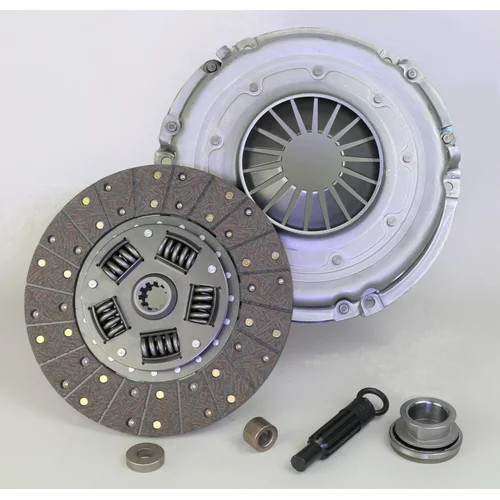

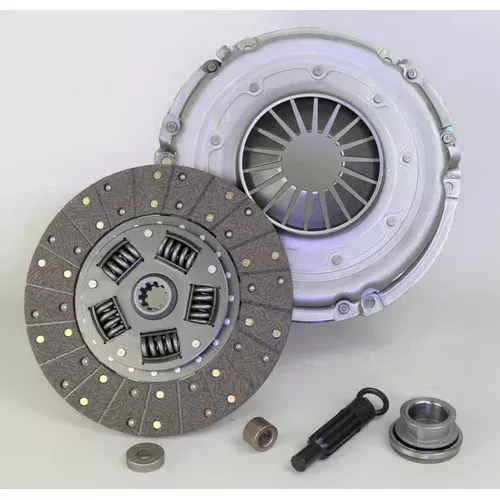

Kit Includes
- 10.5" diaphragm pressure plate (11-5/8" bolt pattern)
- Organic/organic clutch disc with 10-spline 1-1/8" sprung hub
- Mechanical throw-out bearing
- Chevy pilot bushing
- BOP pilot bushing
- Clutch alignment tool
- 1-year free-from-defect warranty
