Purchase MDL Superior GM 11" Clutch Set, 26-spline, Bronze/ Mechanical

MDL Superior GM 11" Clutch Set, 26-spline, Bronze/ Mechanical

SKU: MD-BB4-504

No reviews yet. Write a review!
$500.00 Original Price
Price excludes tax

              Chevy 11" Clutch Assembly Bronze Facings / 26-Spline for GM mechanical T/O

Join Waitlist

Sign up with your email to be notified when this is back in stock!

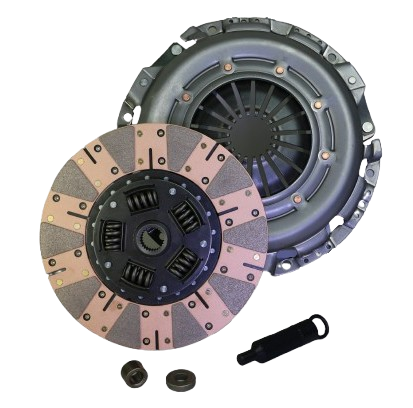

11" GM Clutch Set Details: Bronze Facings for 26-Spline
Application:
intended for Mechanical Throw-out.


Features:
  • Pilot bushings
  • Heavy-duty diaphragm pressure plate
  • 11" Bronze facings disk, 1-1/8" x 26 spline hub
  • GM Mech T/O bearing Pilot bushings
  • Alignment tool.
  • (1 year warranty!)
All MDL clutches are hand-assembled In-house to ensure quality & flawless operation before they leave.They are checked & double-checked for accuracy before they go in the box for shipping.
So you receive a ready-to-install Premium piece right out of the box backed by a 1-year free defect warranty.


A little info on Ceramic & Metallic friction surface application Ceramic or bronze friction material is for higher horsepower applications, quicker shifts wanted in road racing, and a hard-hitting bite for launching for drag racing. The other application for these surfaces is when going to a larger diameter clutch and/or heavier pressure plate is not an option. Ceramics and semi-metallics have a higher 'coefficient of friction than the other materials MDL offers, so it bites harder and holds more power, given the same clamping force. These surfaces are desired in racing applications for how quickly they engage, as well as for handling extreme heat and abuse. MDL ceramics have iron pieces in them that create more friction as the material gets hotter.
For more street-oriented applications, we would use ceramics when we need higher holding power but can't fit a larger diameter disk (more surface area = more holding power). If you cant go to a pressure plate with a higher clamp load, then Ceramic metallic surfaces are a good way to go. As an example, smaller engines make good power but are limited to sub 10" disk size.

The 3 attributes that determine the torque rating of a clutch are:
  1. Surface area (disk size)
  2. Coefficient of friction (Kevlar, organic, ceramic)
  3. Clamping force of the pressure plate. To get higher torque handling ratings, we must increase at least one of those 3.


https://www.moderndriveline.com/all-about-clutch-tech/ Don't see what you're looking for, please call208-453-9800

Specifications

Application
Hard Drags
Disk Diameter
11"
Disk Facings
Bronze/Bronze
Disk Single Or Double
Single disk
Disk Spline Size
26 x 1-1/8"
Hub Type
Sprung
Pressure Plate Bolt Pattern
12-5/8"
Release Type, Cable, Hydraulic, Mechanical
Mechanical
Spline Count
26
Torque Rating/HP
750
Type
Single Disk
